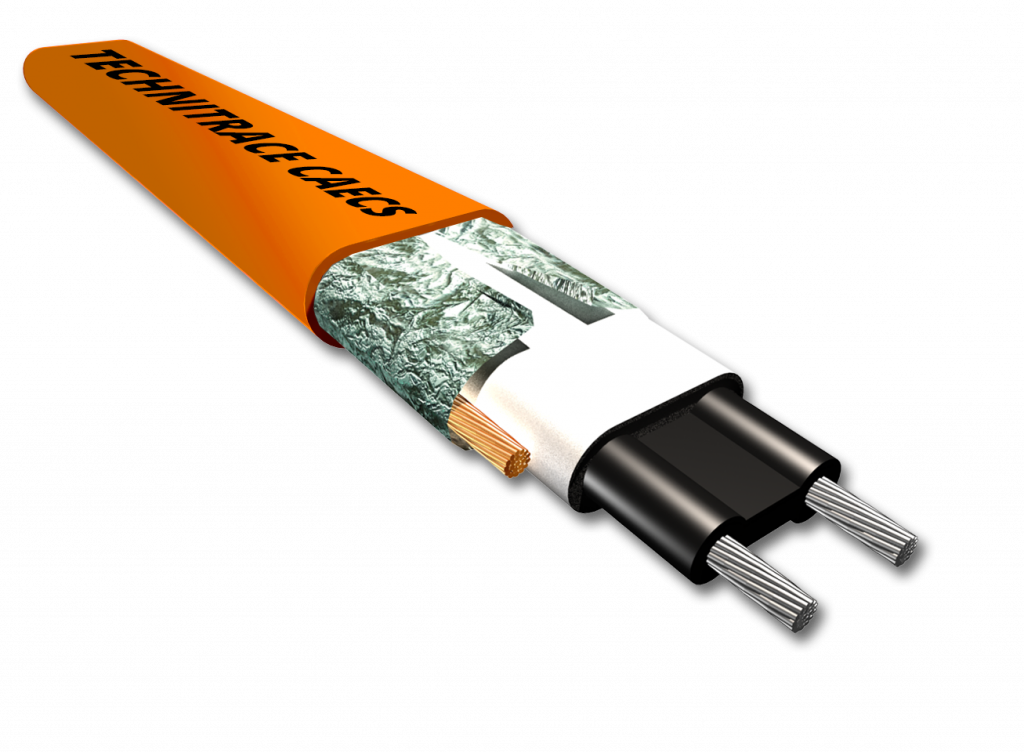

CAECS medium-temperature self-regulating heating cables consist of a semi-conductive plastic heating element capable of adjusting its heat output (W/m) at any point based on the local temperature.
This intrinsic characteristic of the heating system can, in certain cases, eliminate the need for a separate control system (thanks to self-regulation). They can be cut to length on-site, making installation very simple. However, we recommend using a control system.
PUISSANCES CALORIFIQUES
14 W/m à 50° C
12 W/m at 55° C
10 W/m at 60° C
Applications
Temperature maintenance for domestic hot water piping systems (45 to 60°C)
Other applications: contact us
CAECS cable composition
Benefits
Cut-to-length and power output adjusted according to contact temperature.
Semiconductor element with intrinsic self-regulation at every point.
Nominal power ratings based on piping temperature
Start-up current: max. 0.4 A at 15°C
Residual current device (RCD): 30 mA mandatory
Max. length if controlled by a 16 A thermostat: 40 m
Max. length if controlled via a cabinet-mounted relay: 80 m

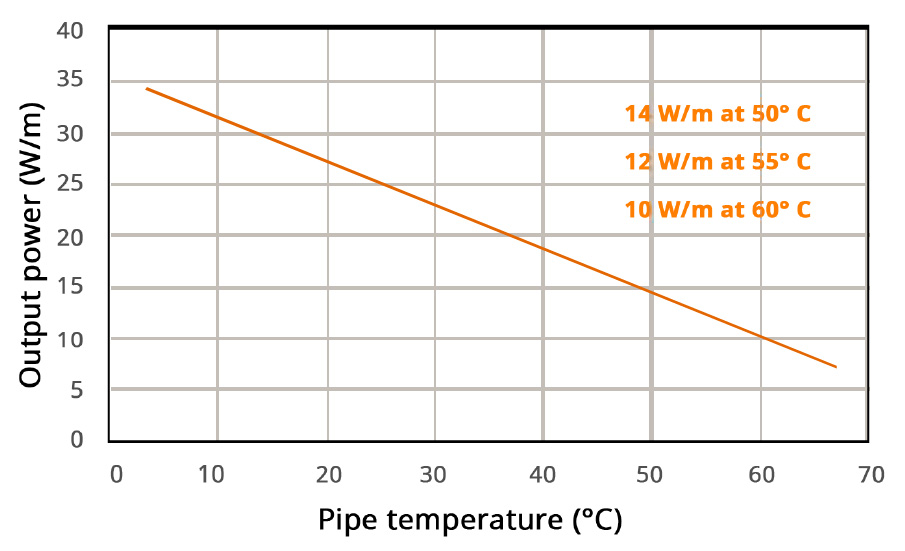

Heating output: see adjacent table
Earthing: braid
Max. dimensions: 6 mm ±0.5 mm / 12.2 mm ±0.5 mm
Maximum maintain temperature: 60°C
Warranty limits: 65°C max. energized
80°C de-energized

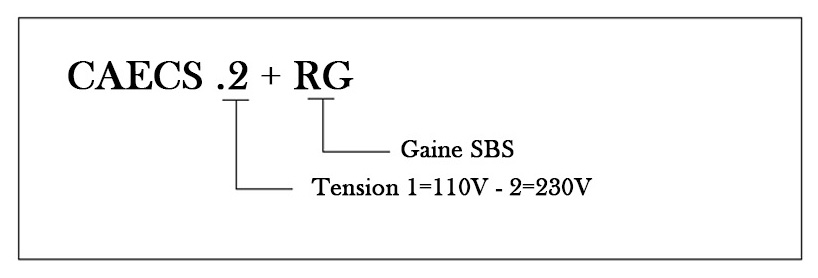

Reference
