CONNECTION ACCESSORIES

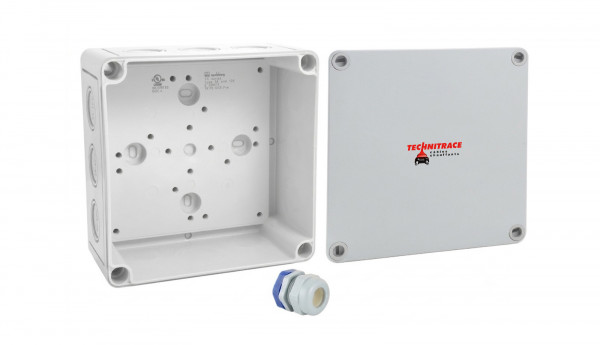

Junction box, IP66 rated, UV-resistant, halogen-free
Dimensions: 130 x 130 x 75 mm
Minimum ambient temperature: -35°C
24-hour ambient temperature: 60°C
Supplied with a cable gland and a 3-way terminal block (2.5 mm²)

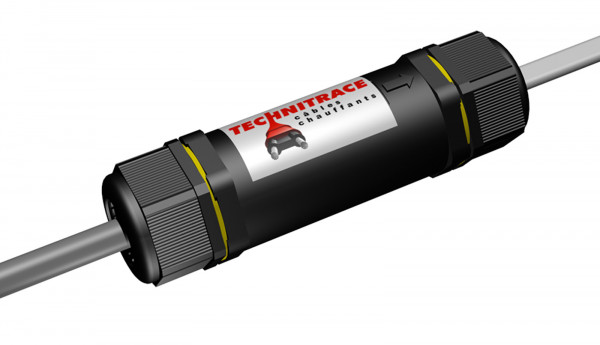

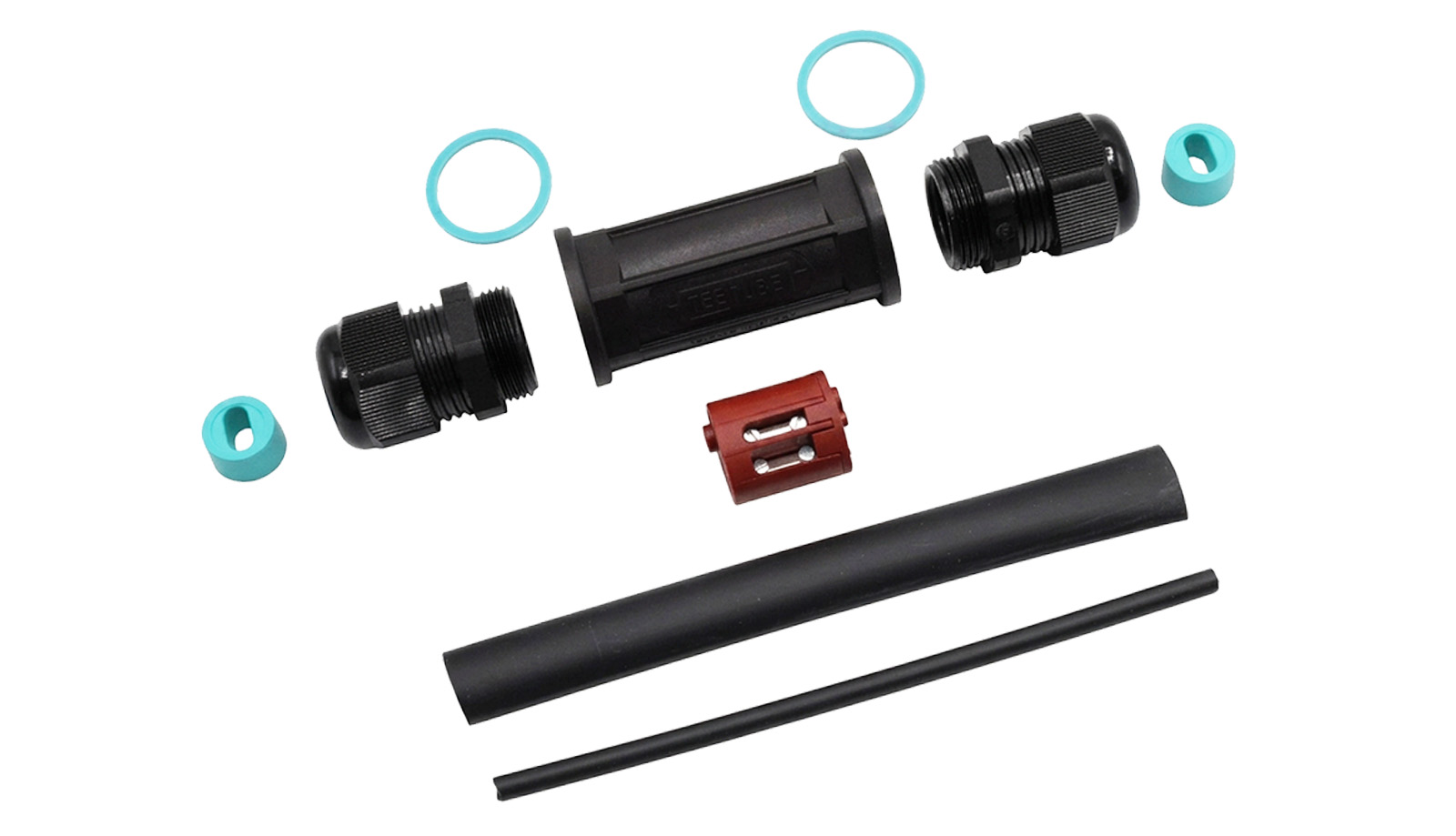

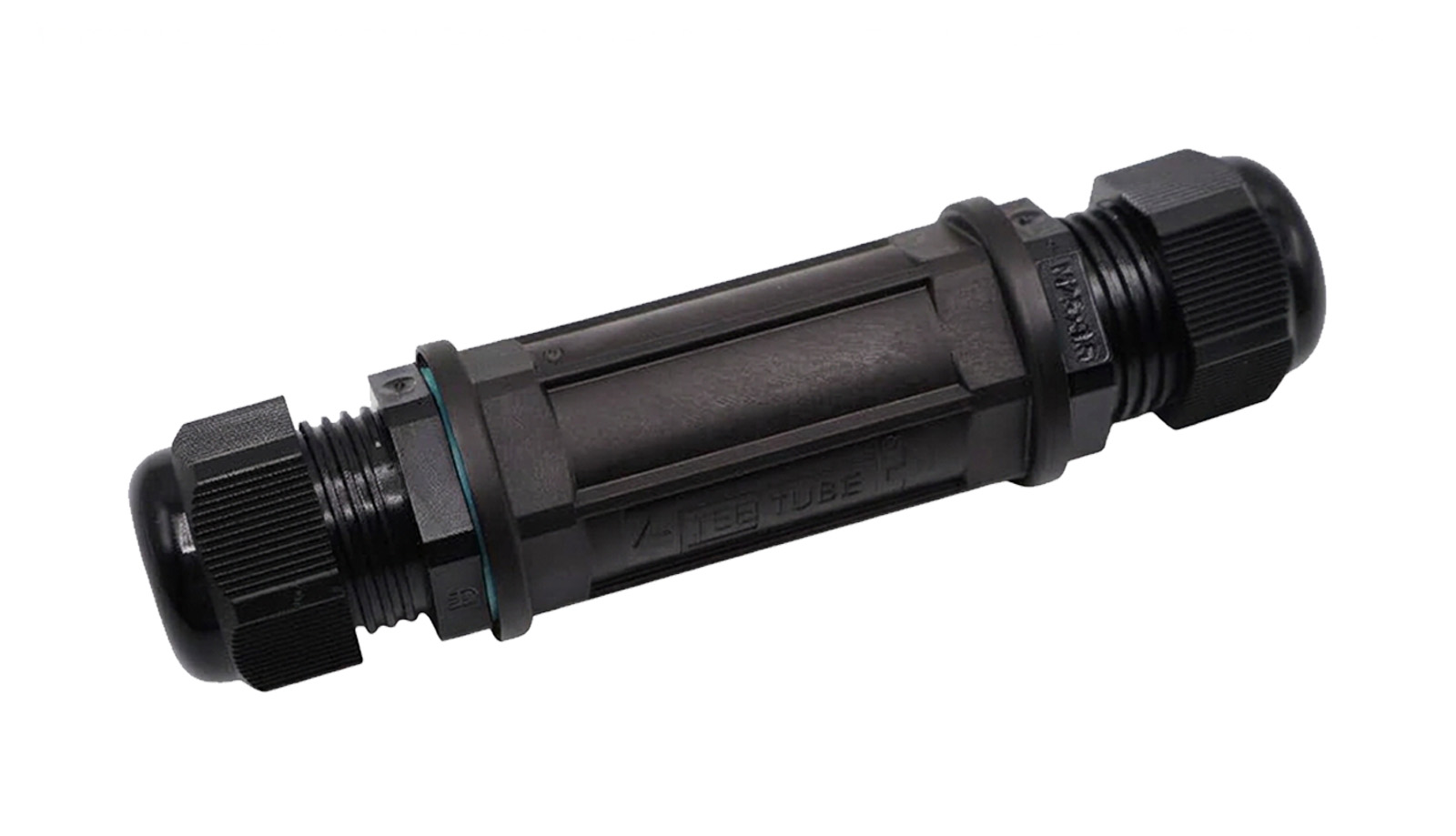

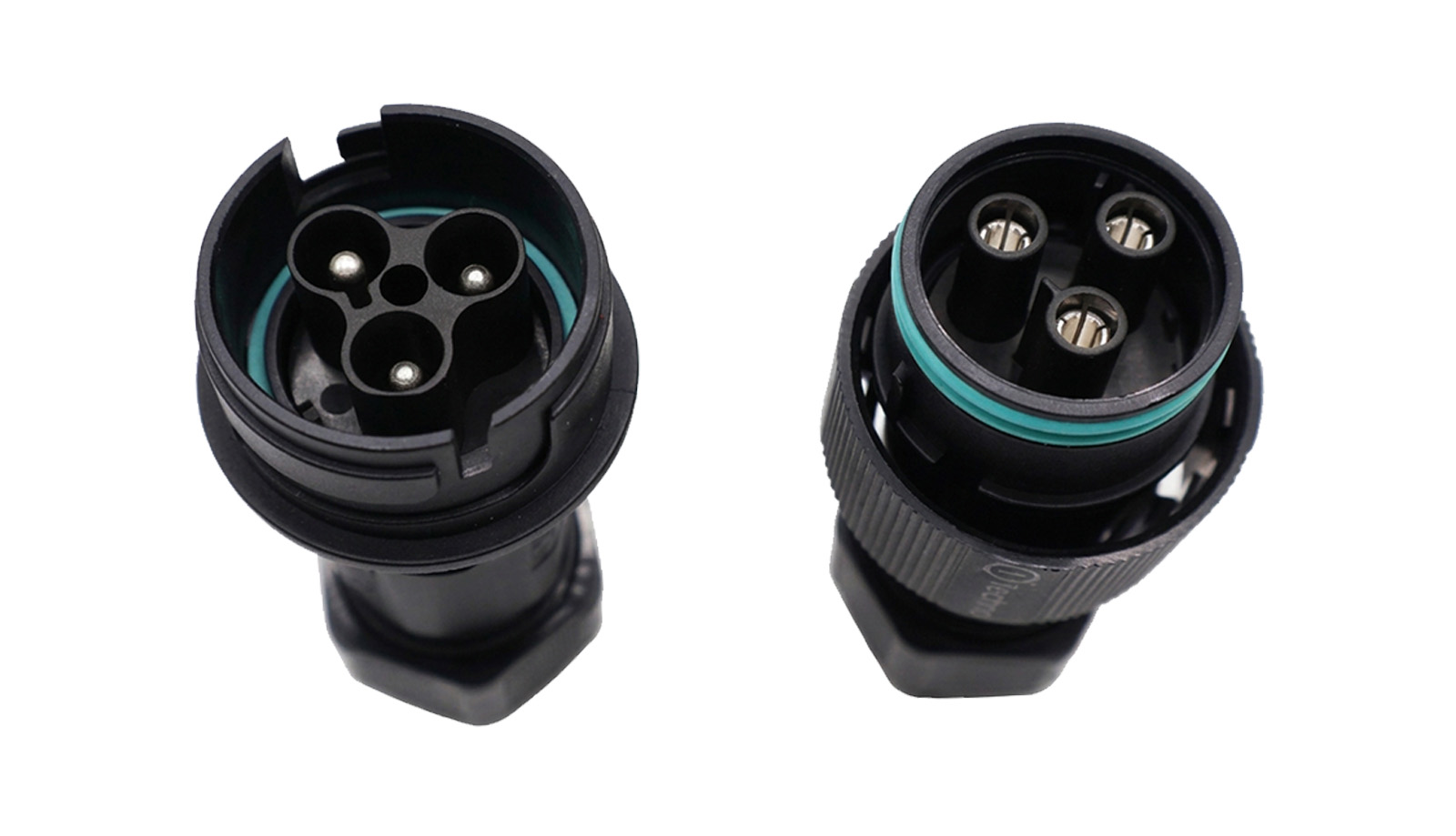

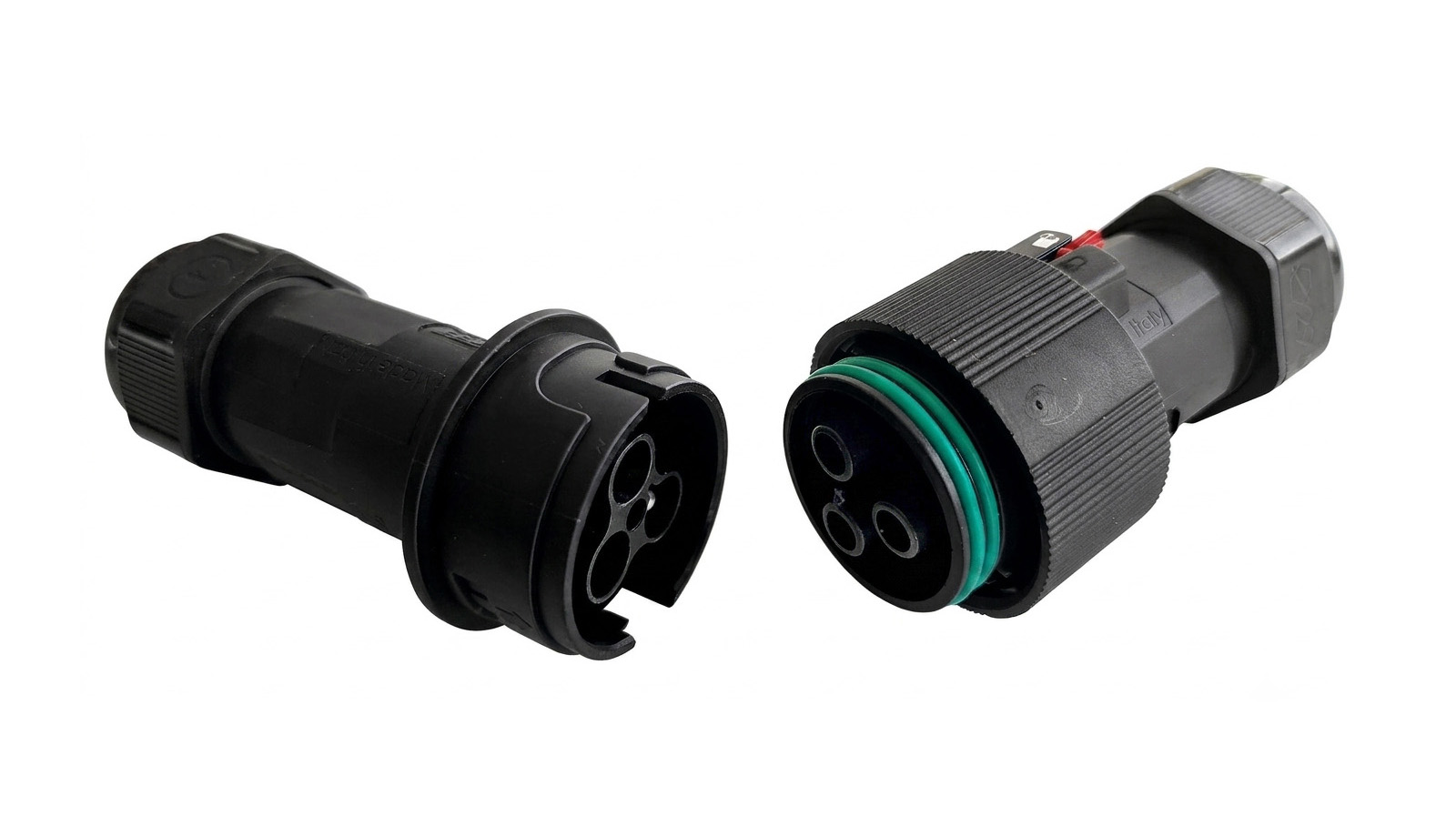

IP68 protection
Max. diameter: 35 mm
Length (depending on tightening): approx. 130 mm
Operating temperature: -20°C to -125°C
Rated voltage (AC/DC): 450 V AC
Rated current: 17.5 A

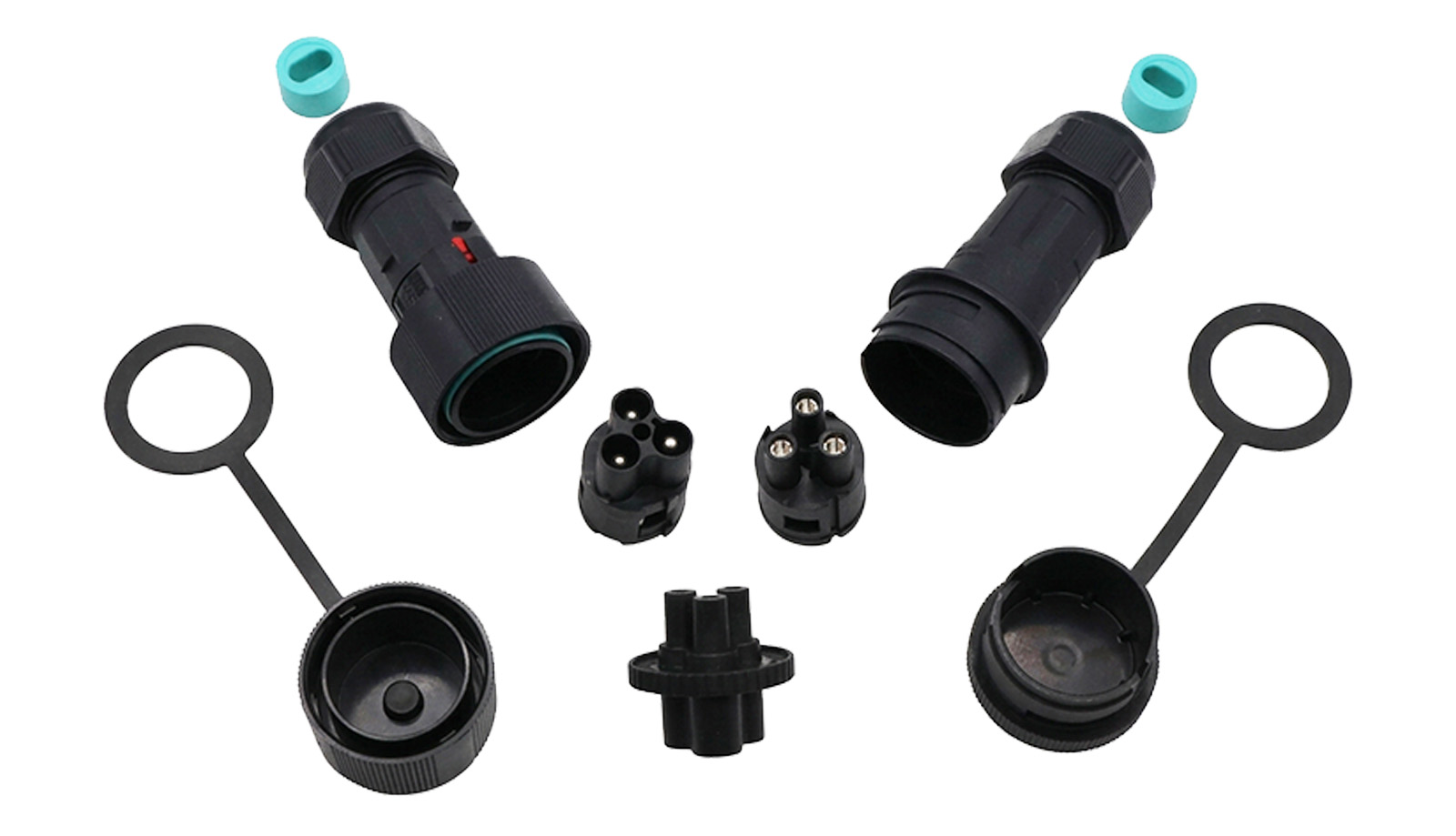

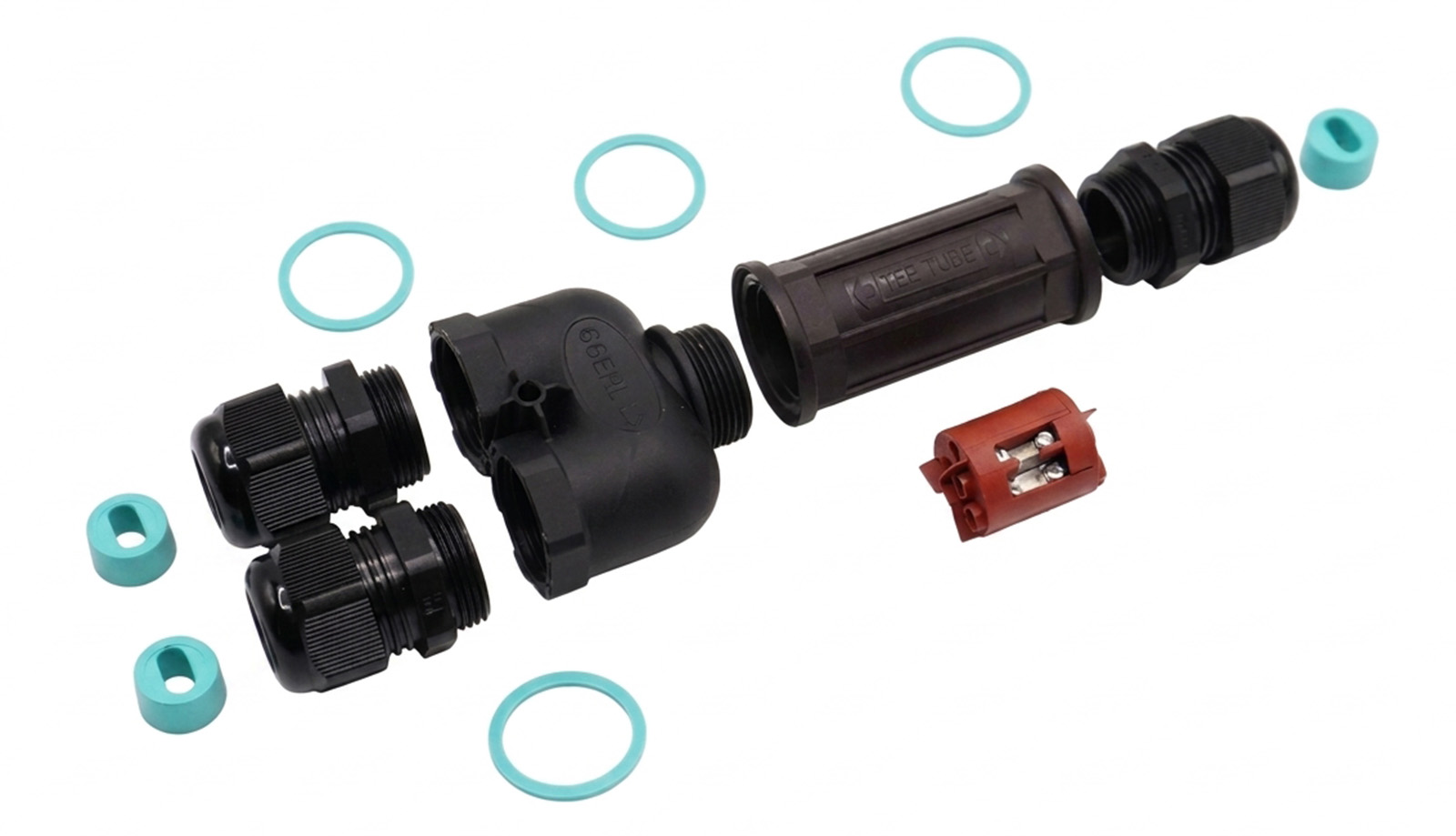

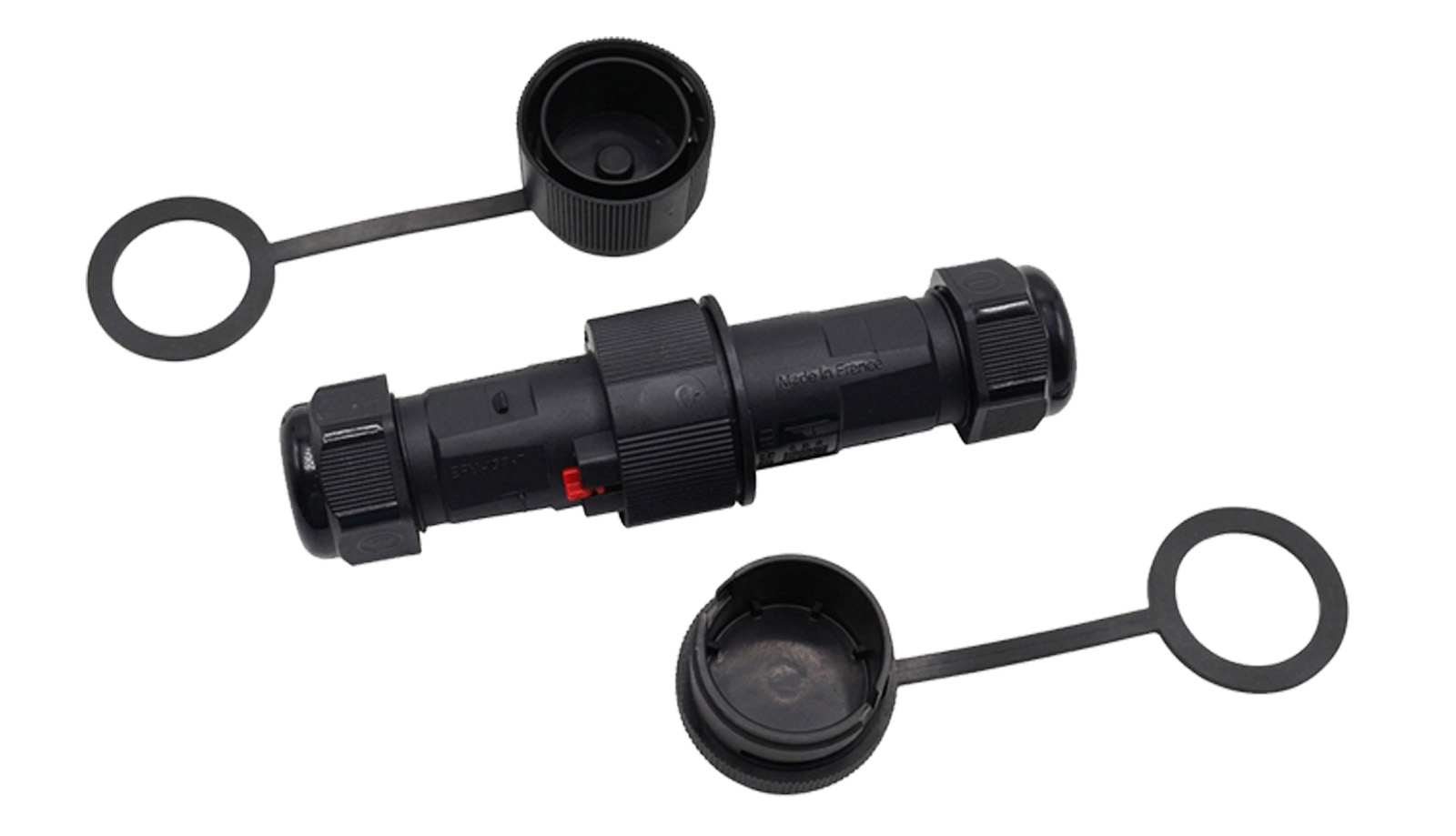

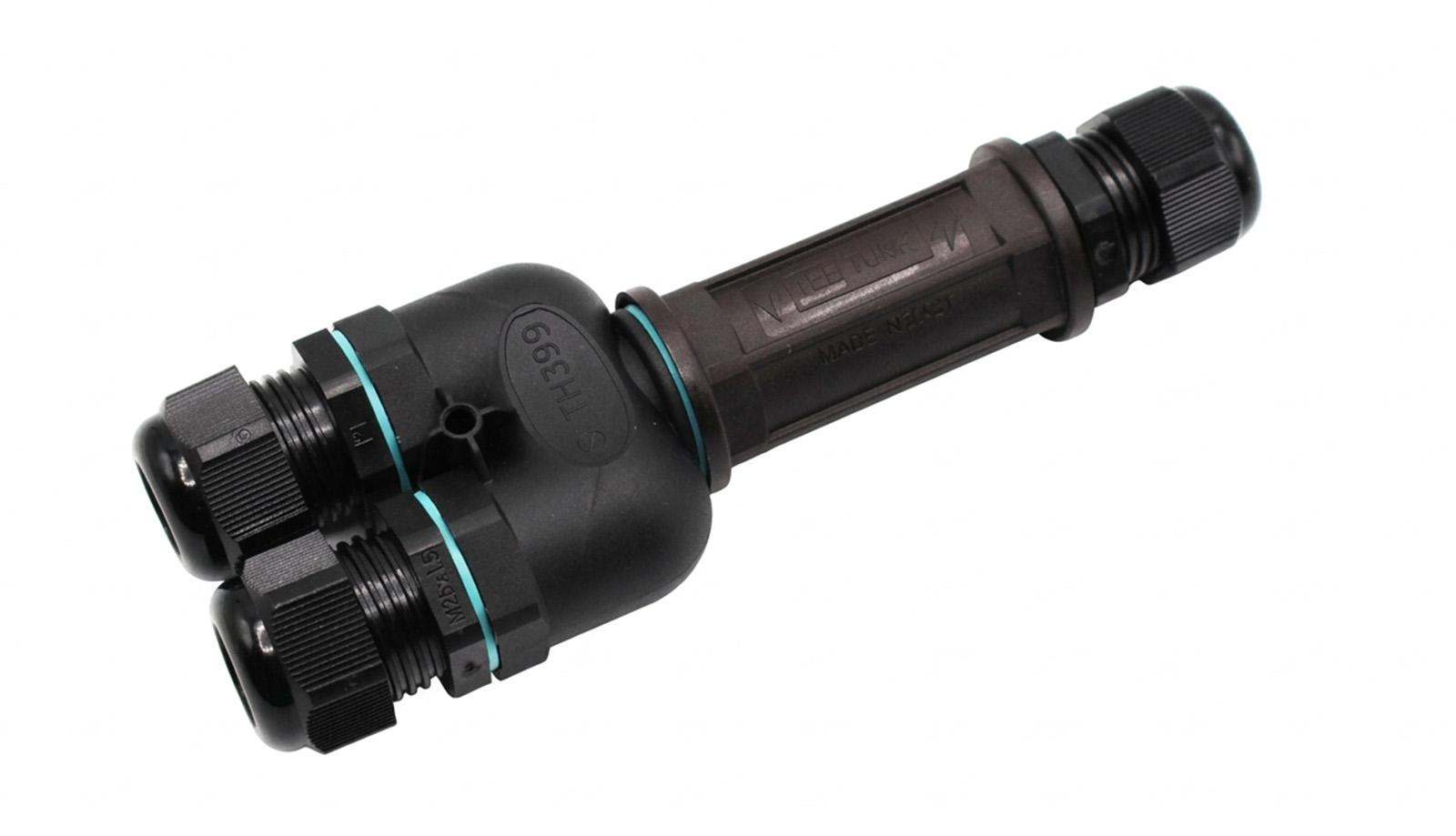

IP68 protection
Dimensions: Ø34 × 65, × 180 mm
Connection point: 3
Operating Temperature: -20°C to 125°C
Rated Voltage (AC/DC): 450 V AC
Rated Current: 32 A

Technical specifications coming soon

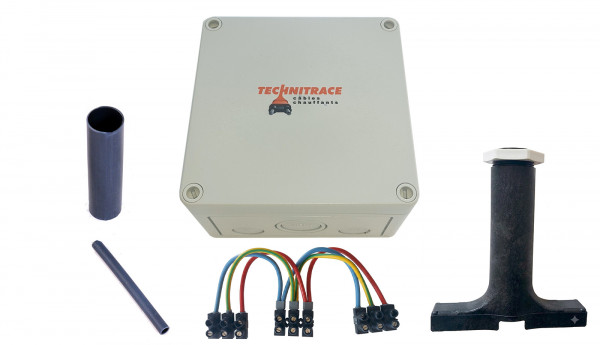

The branch connection assembly consists of:
– a junction box
– a support tube
– a branch harness
– heat-shrink tubing
It can be used on diameters greater than 25 mm and piping systems not exceeding 80°C.

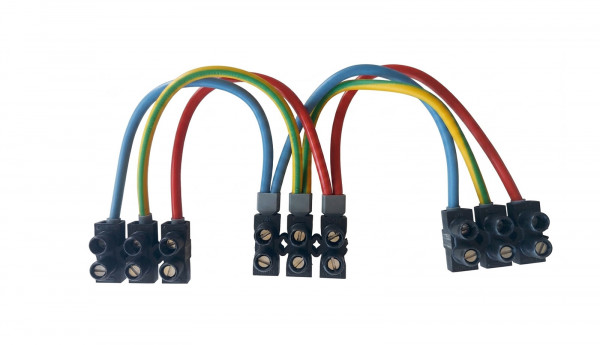

Simplifies branch connections:
– Input: 1 heating cable or power supply cable
– Output: 2 heating cables
3 jumpered terminal blocks (2.5 mm²)
Permissible current: 20 A
For installation in BJKS junction boxes

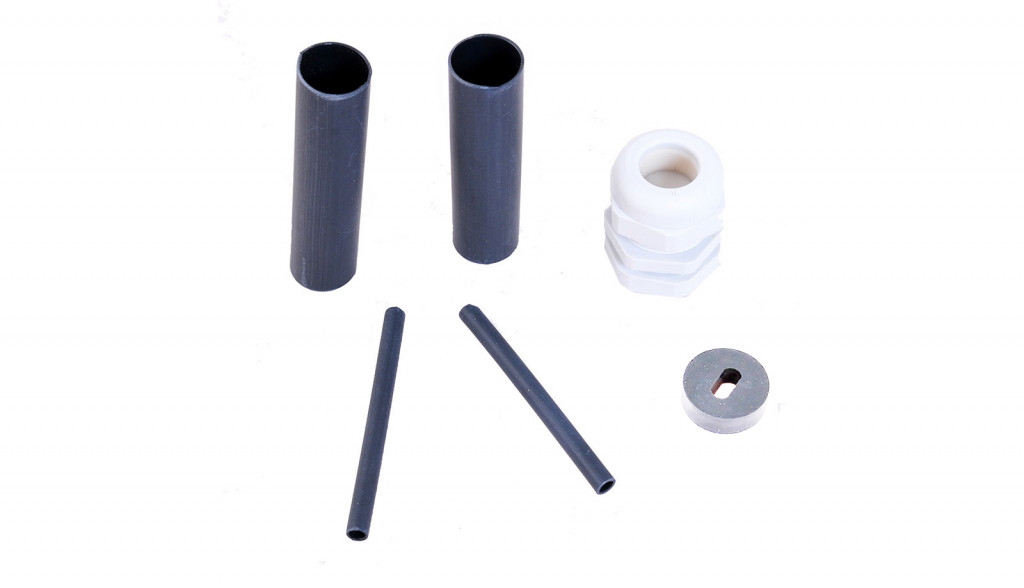

Complete connection kit for self-regulating heating cables, including:
– installation instructions
– an M20 cable gland with nut
– an oblong gasket
– ​​2 pieces of 3/1 diameter heat-shrink tubing
– 2 pieces of 12/4 diameter heat-shrink tubing (for cable ends)

Minimum shrink temperature: 120°C
Permissible operating temperature range for the heat-shrink tubing: -55°C to +105°C

CAHT Kit (1 CAHT connection kit + 1 installation guide)
The connection kit consists of:
For the head:
– 1 M20 cable gland with 1 nut, 1 O-ring, two 5 cm pieces of 3/1 diameter heat-shrink tubing, and one 5 cm piece of 12/4 diameter tubing
Cable end:
– 1 red silicone end cap (maximum permissible temperature: 200°C)

CATHT Set (1 CATHT connection kit + 1 installation guide)
The connection kit consists of:
For the head:
– 1 M20 cable gland with 1 nut, 1 O-ring, two 5 cm pieces of 3/1 diameter heat-shrink tubing, and one 5 cm piece of 12/4 diameter tubing
Cable end:
– 1 red silicone end cap (max. permissible temperature 250°C)

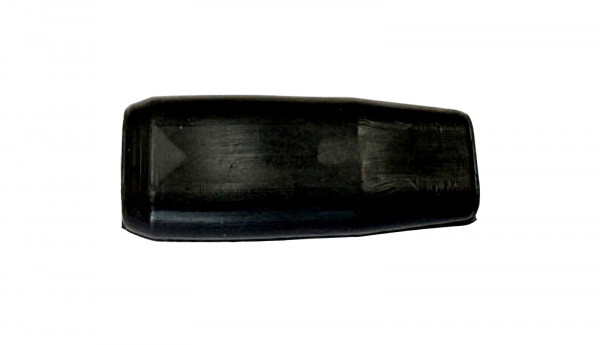

Silicone tip with gel at the end
Length: 35 mm
Internal flat sections: 9.2 mm x 3.5 mm
Tip capable of withstanding continuous temperatures of 200°C

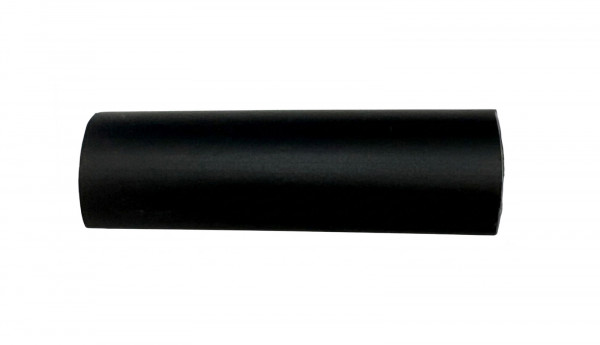

Heat-shrinkable cable end cap
Length: 50 mm
Diameter: 12 mm (shrunk: 4 mm)
Shrink temperature: 120°C
Permissible operating temperature: -55°C to +105°C

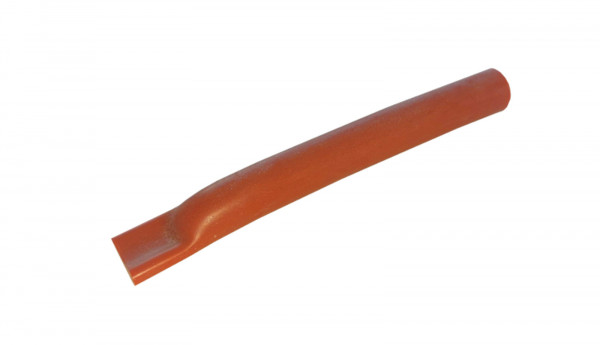

Silicone end piece (for bonding)
Length: 95 mm
Inner diameter: 8 mm
Tip withstands continuous temperatures of 200°C

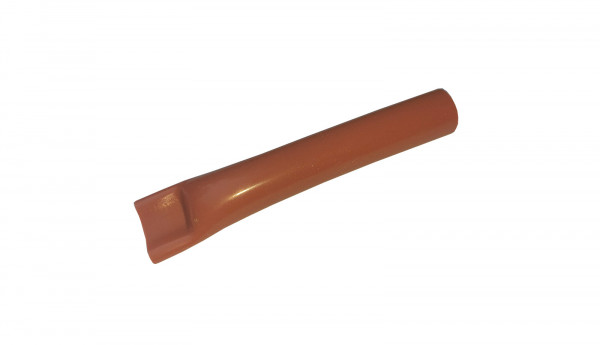

Silicone end piece for bonding
Length: 75 mm
Inner diameter: 8 mm
Tip withstands continuous temperatures of 300°C

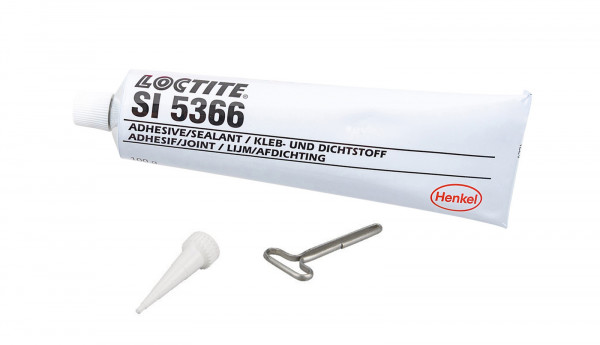

100-gram tube
Withstands temperatures up to 250°C

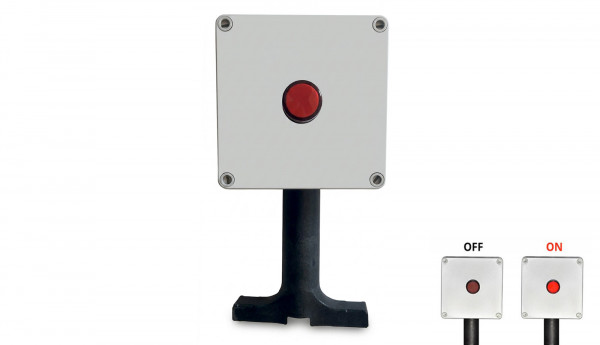

230-volt end-of-line indicator light
Mounted on a junction box and support tube assembly
Cable passes directly through the tube to connect to the indicator light
For piping larger than 25 mm
Operating temperature not exceeding 100°C
