TEMPERATURE CONTROL ACCESSORIES

THA/C Room thermostat

Halogen-free polycarbonate enclosure – IP 66 (IEC 529)
Dimensions: 180 x 130 x 63 mm
230 V power terminal and 2 power cable outlets for heating cable
Maximum permissible current: 16 A
On/Off dry contact on phase / common neutral
Manual setting range: 4°C to 40°C

THU 0-60°C Room thermostat

IP65 protection. Manual adjustment range 0–60°C
Dimensions: 120 x 122 x 56 mm
Supply voltage: 230 V
Contact: potential-free changeover relay
4-meter probe with temperature rating of -25°C to +70°C

THU 40-100°C Room thermostat

IP65 protection. Manual adjustment range 40–100°C
Dimensions: 120 x 122 x 56 mm
Supply voltage: 230 V
Contact: potential-free changeover relay
1.5-meter probe with temperature rating of -50°C to +175°C

THS/S 0-100°C Surface-mount thermostat

Watertight enclosure – IP66 protection
Dimensions: 130 x 130 x 73 mm
Thermostat unit: 16 A / 230 V
Contact: potential-free changeover relay
Standard temperature range: 0–100°C

THS/S 50-250°C Surface-mount thermostat

Watertight enclosure – IP66 protection
Dimensions: 130 x 130 x 73 mm
16 A / 230 V thermostat unit
Contact: potential-free changeover relay
Standard temperature range: 50–250°C

THA/E Electronic room thermostat

Halogen-free polycarbonate enclosure – IP 66 (IEC 529)
Dimensions: 130 x 130 x 73 mm
1 x 230 V input – 1 x 230 V/16 A controlled output
Integrated inrush current limiter
Remote temperature probe in an M20 PE gland

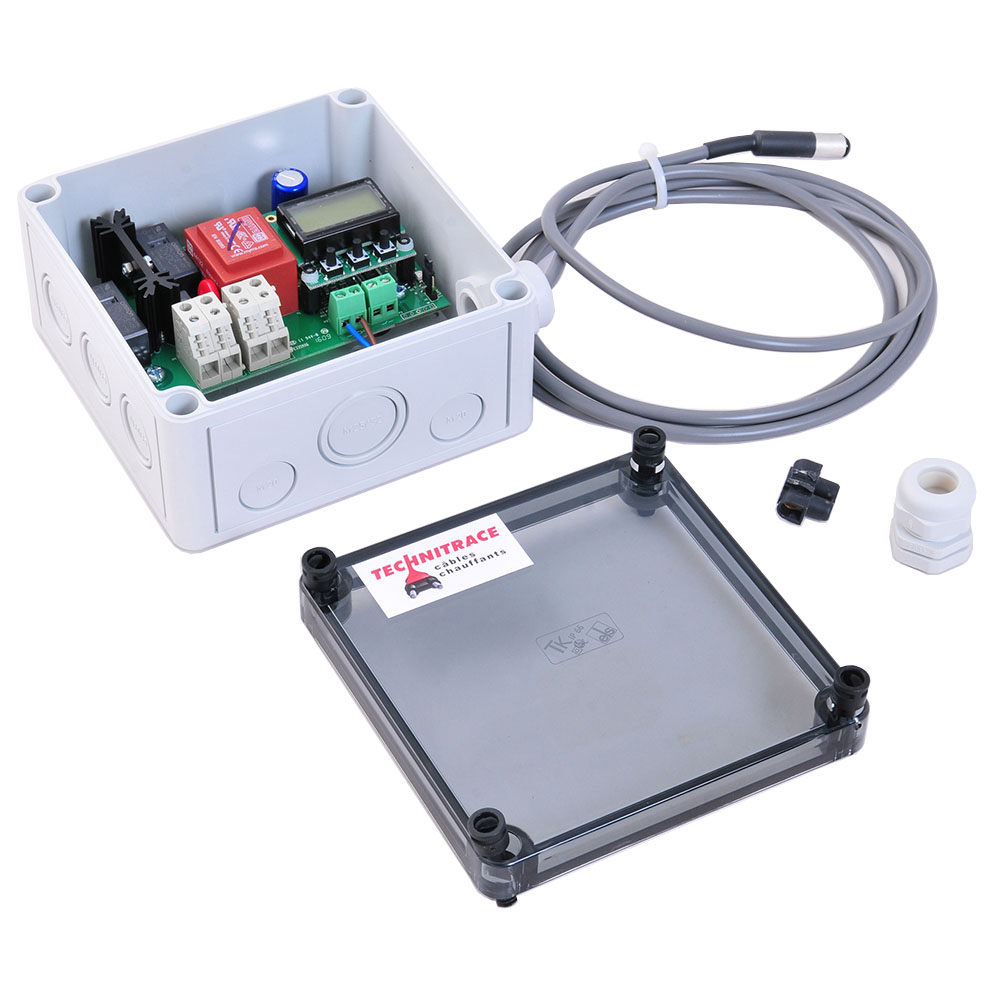

THS/E Electronic room thermostat

Halogen-free polycarbonate enclosure – IP 66 (IEC 529)
Dimensions: 130 x 130 x 73 mm
THS/E board + display
1 x 230 V input / 1 x 230 V 16 A on/off output
Integrated inrush current limiter
PT1000 probe, length 2000 mm / Range 0–100°C

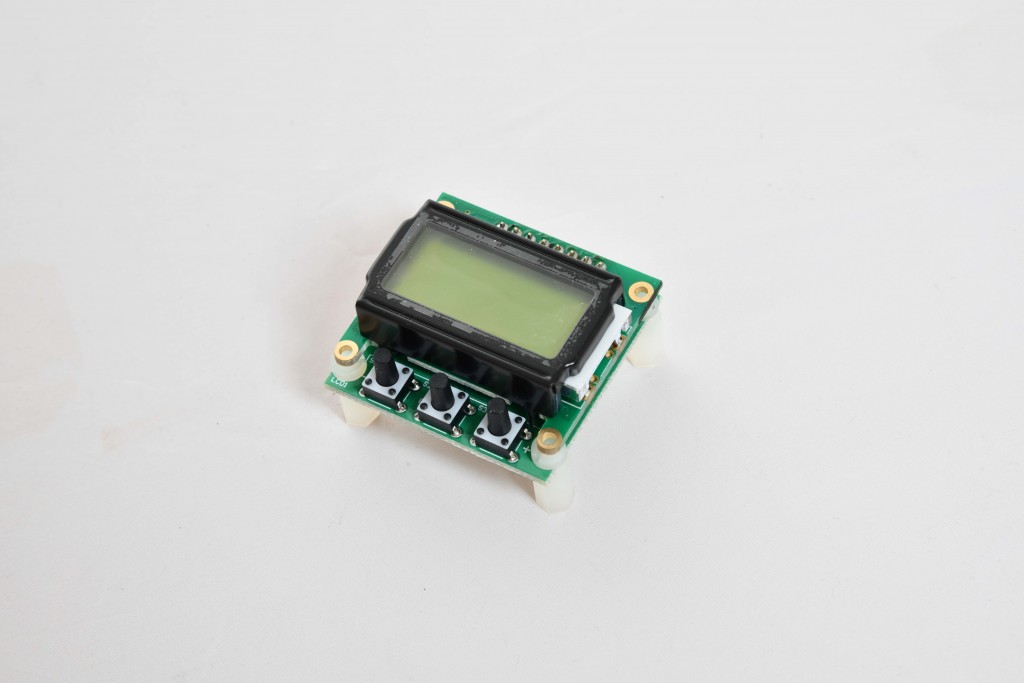

THA/E Mini programming console

Mini programming console on standoffs
Allows programming of THA/E controllers
Powered directly from the circuit board
Digital display / 3 mini push-buttons
Level I and Level II programming manual included

PT1000 Temperature probe

PT1000 temperature probe for THA/E enclosure
Flexible cable: 2 m / 0.75 mm² (other lengths available on request)
IPx4 waterproof probe / supplied with cable gland
Can be used as a remote room sensor or surface sensor for the THE/S thermostat

ST Snow Removal Station

PT1000 temperature probe for THA/E enclosure
Flexible cable: 2 m / 0.75 mm² (other lengths available on request)
IPx4 waterproof probe / supplied with cable gland
Can be used as a remote room sensor or surface sensor for the THE/S thermostat
