OTHER ACCESSORIES

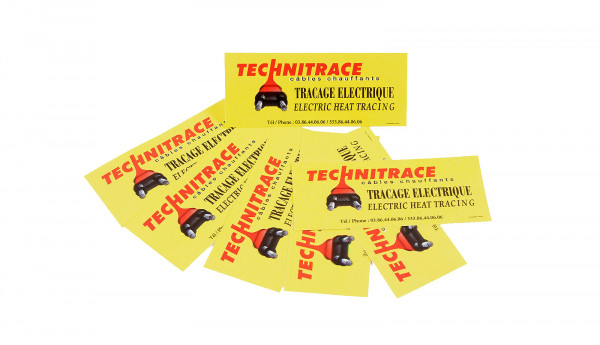

“Electric Heat Tracing” potential hazard warning label

Model for self-regulating cables

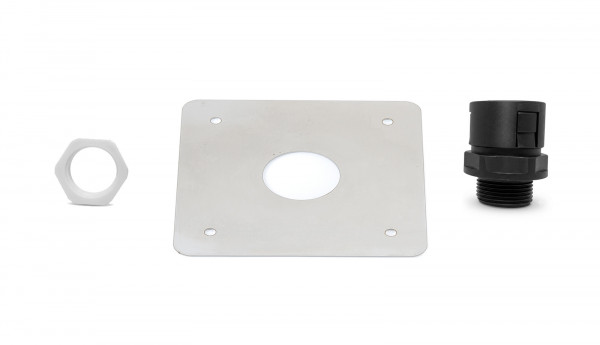

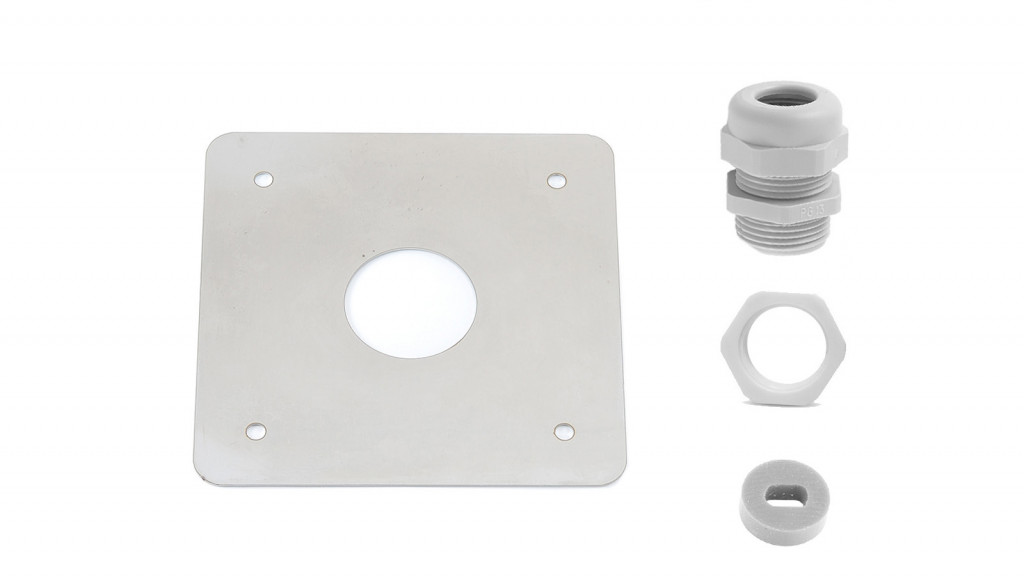

Stainless steel cable gland plate
Cable gland + cable seal + nut

Stainless steel pass-through plate

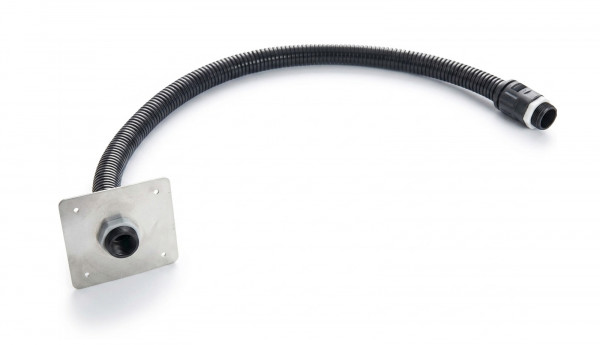

Flexible corrugated conduit, 500 mm length
+ 2 end fittings + 2 nuts

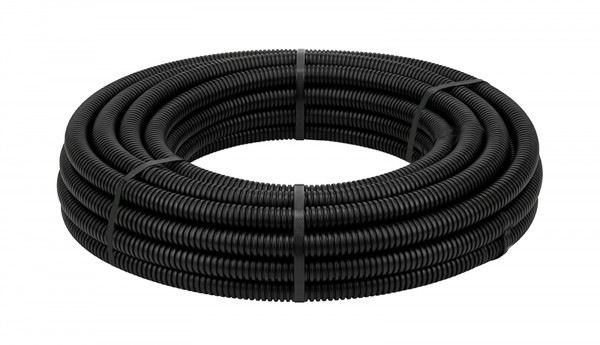

Flexible PA6 conduit (closed) – ID
Inner diameter 16.8 mm, outer diameter 21 mm
Temperature range -40/+120°C

Fittings that clip onto PA6 conduit at one end and screw onto insulation cladding at the other.
Provides a neat cable entry point into the insulation.

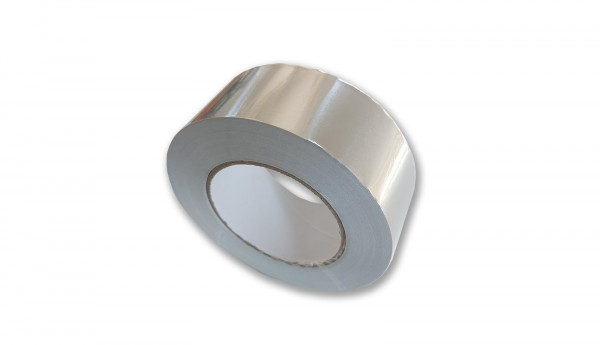

Adhesive tape for securing cables to piping
Width: 50 mm
Length: 50 meters
Backing thickness: 40 microns
Temperature resistance: -20 to +110°C

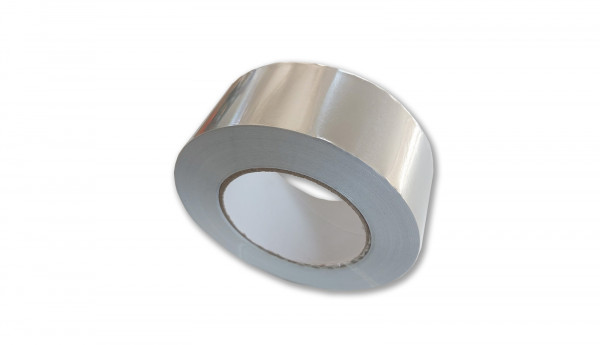

Adhesive tape for securing the cable to the piping
Width: 50 mm
Length: 50 meters
Backing thickness: 37 microns
Temperature resistance: -20°C to +250°C

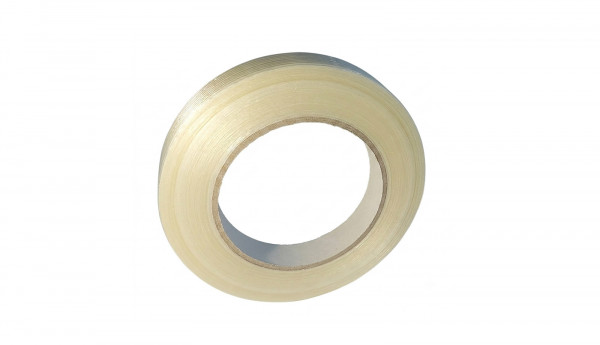

Strapping tape
Width: 19 mm
Length: 50 meters
Total thickness: 125 microns
Temperature resistance: 60°C

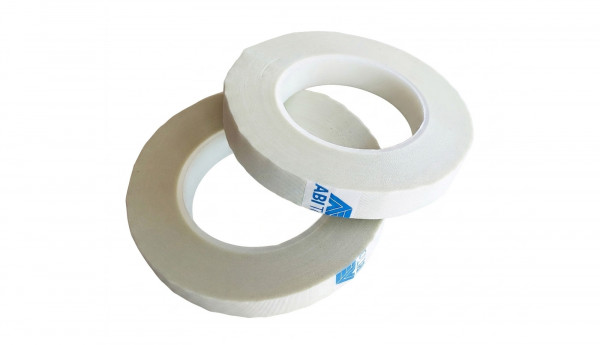

Material: Glass cloth
Total thickness: 180 microns
50 m roll
Width: 19 mm
Operating temperature: -29°C to +175°C

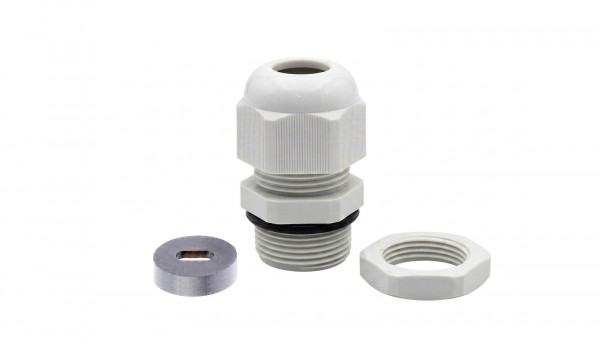

Cable gland with an oblong seal for routing self-regulating cables.

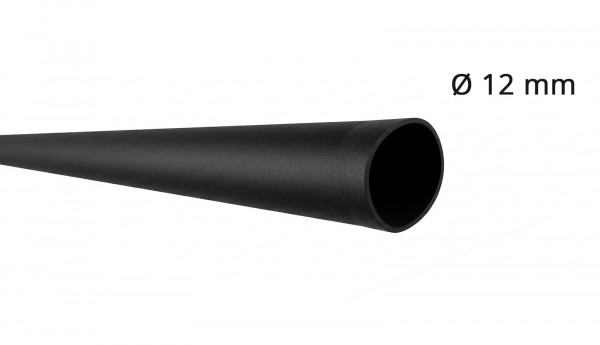

120 cm heat-shrink tubing rod
Diameter: 12 mm (shrinks to 4 mm)
Shrink temperature: 120°C
Permissible operating temperature: -55°C to +105°C

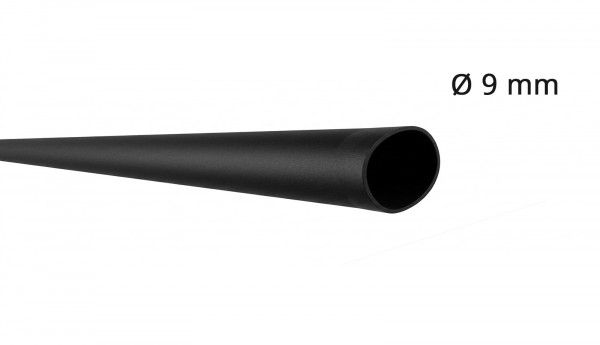

120 cm heat-shrink tubing rod
Diameter: 9 mm (shrinks to 3 mm)
Shrink temperature: 120°C
Permissible operating temperature: -55°C to +105°C

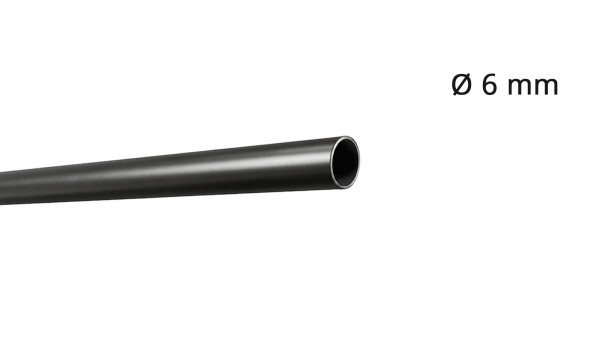

120 cm heat-shrink tubing rod
Diameter: 6 mm (shrinks to 3 mm)
Shrink temperature: 120°C
Permissible operating temperature: -55°C to +105°C

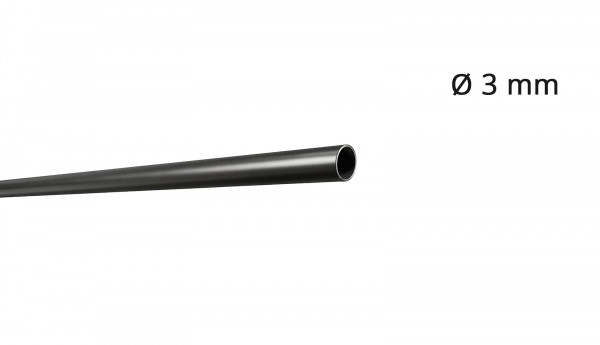

120 cm heat-shrink tubing rod
Diameter: 3 mm (shrinks to 1 mm)
Shrink temperature: 120°C
Permissible operating temperature: -55°C to +105°C

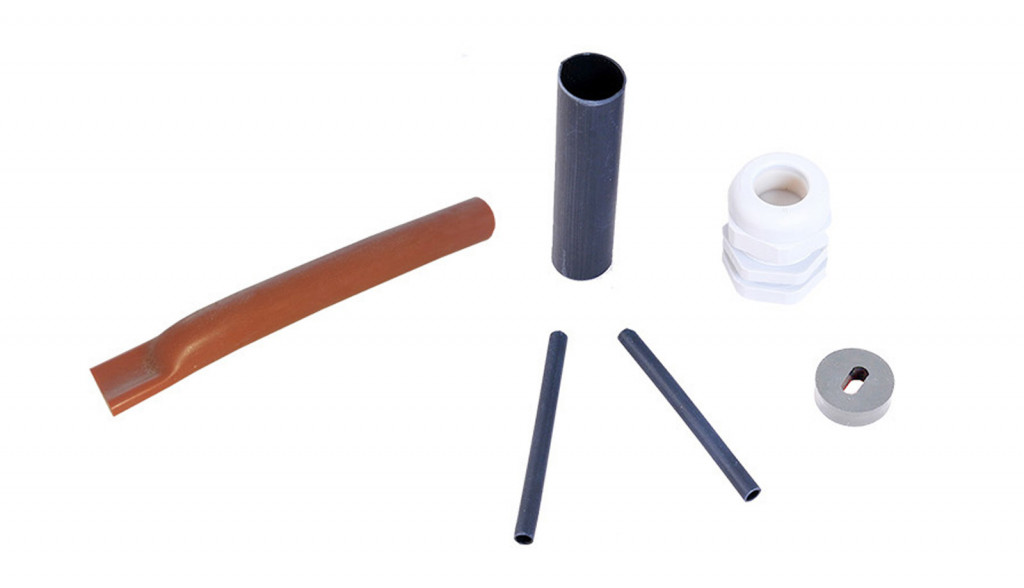

CAHT Kit (1 CAHT connection kit + 1 installation guide)
The connection kit consists of:
For the head:
– 1 M20 cable gland with 1 nut, 1 O-ring, two 5 cm pieces of 3/1 diameter heat-shrink tubing, and one 5 cm piece of 12/4 diameter tubing
Cable end:
– 1 red silicone end cap (maximum permissible temperature: 200°C)

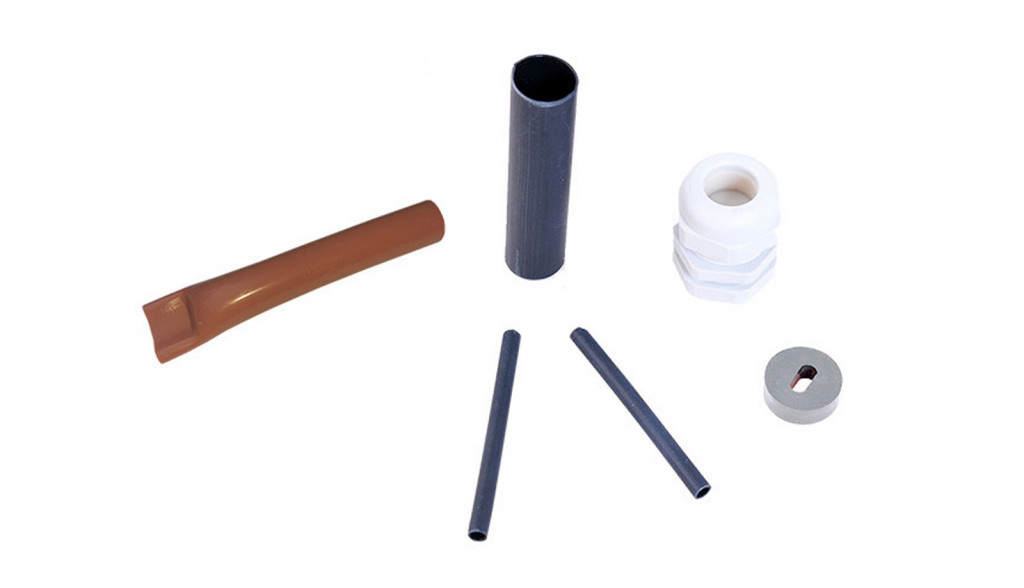

CATHT Set (1 CATHT connection kit + 1 installation guide)
The connection kit consists of:
For the head:
– 1 M20 cable gland with 1 nut, 1 O-ring, two 5 cm pieces of 3/1 diameter heat-shrink tubing, and one 5 cm piece of 12/4 diameter tubing
Cable end:
– 1 red silicone end cap (max. permissible temperature 250°C)
