TECHNITRACE HEATING CABLES

SELF REGULATING HEATING CABLE

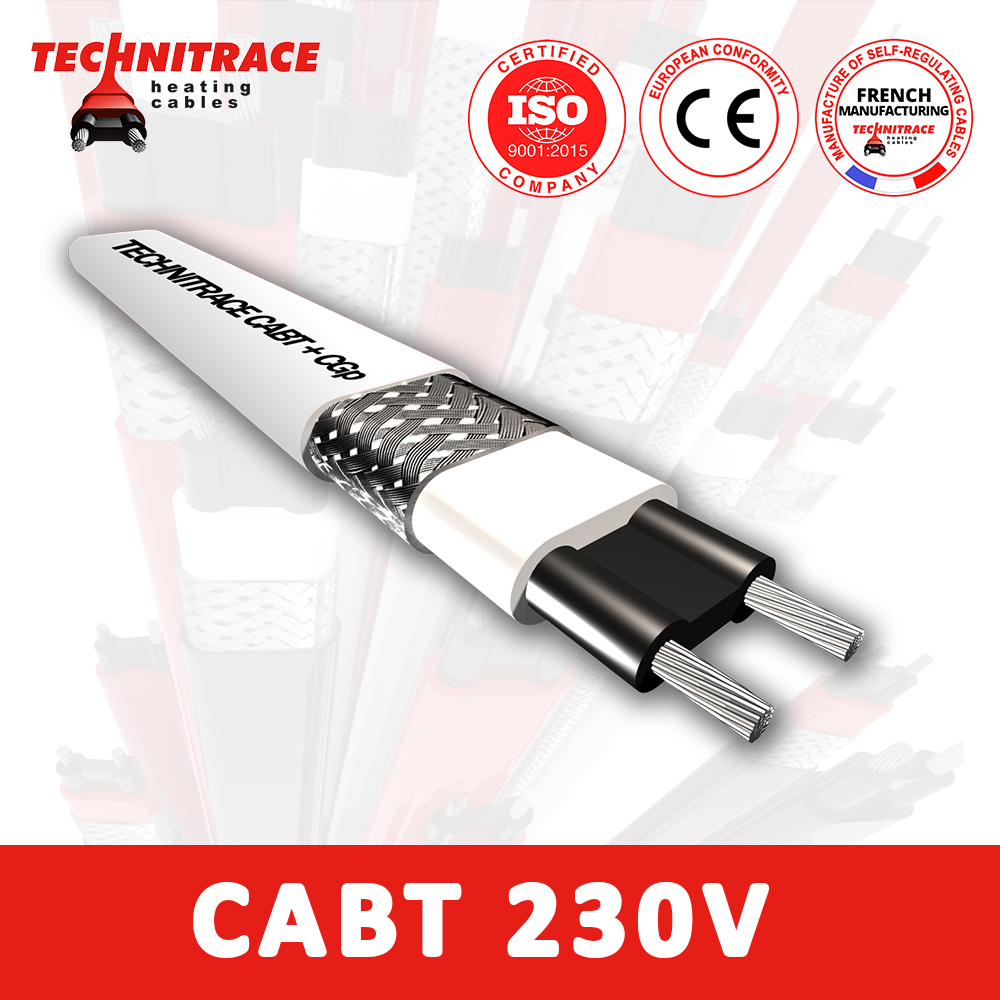

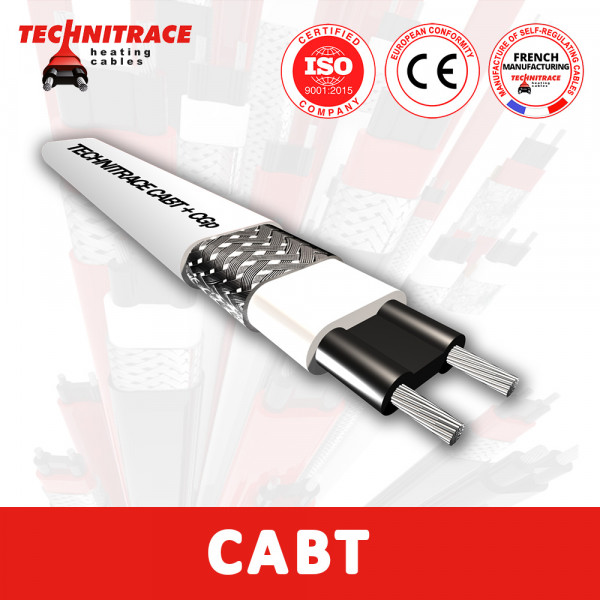

Low temperature self regulating heating cable
CABT

  • Cold water frost protection
  • Hot water frost protection (65°C max)
  • Temperature maintenance based on heat loss (45°C max)
  • CABT: Basic version
  • CABT+C: Tinned copper braid version

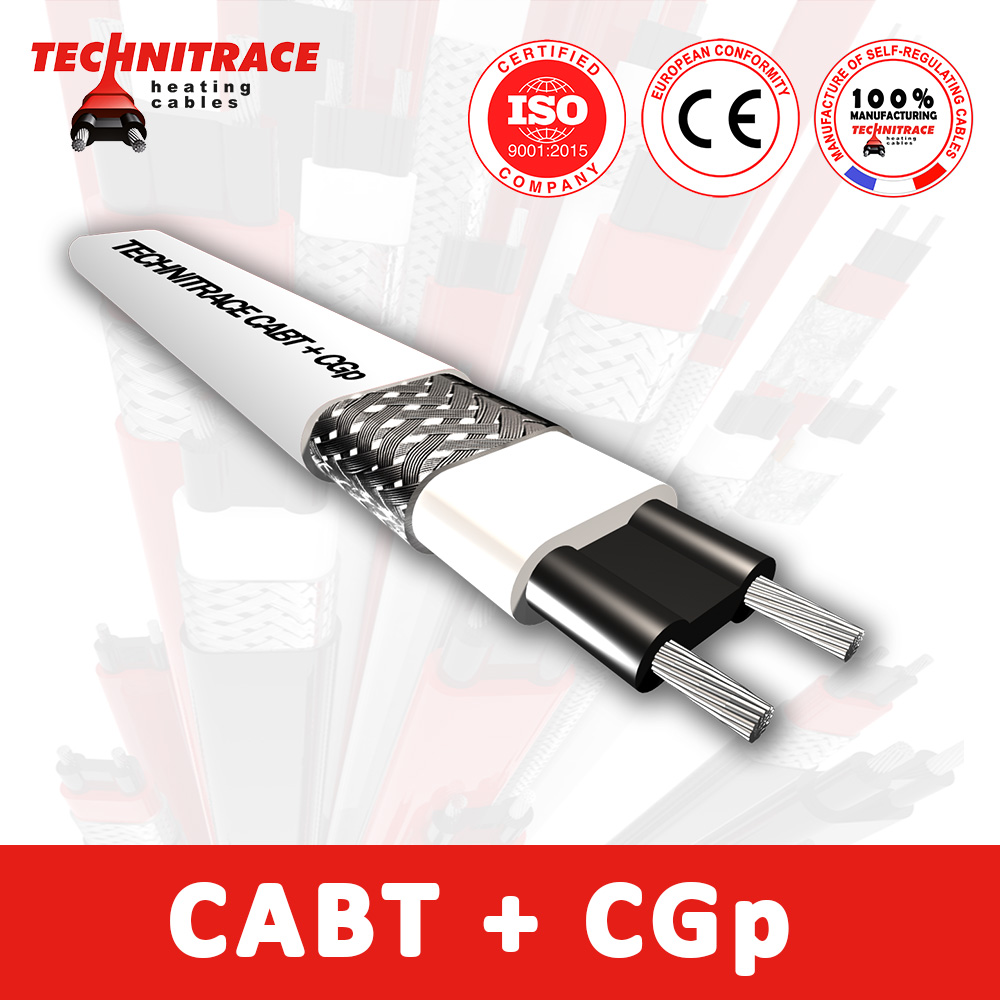

  • CABT+CG: Braid + over jacket version
  • CABT+RG: Aluminium foil + ground wires + over jacket option
  • 10/15/20/26/30 W/m
Technical Sheet (PDF)
Everything about CABT cable

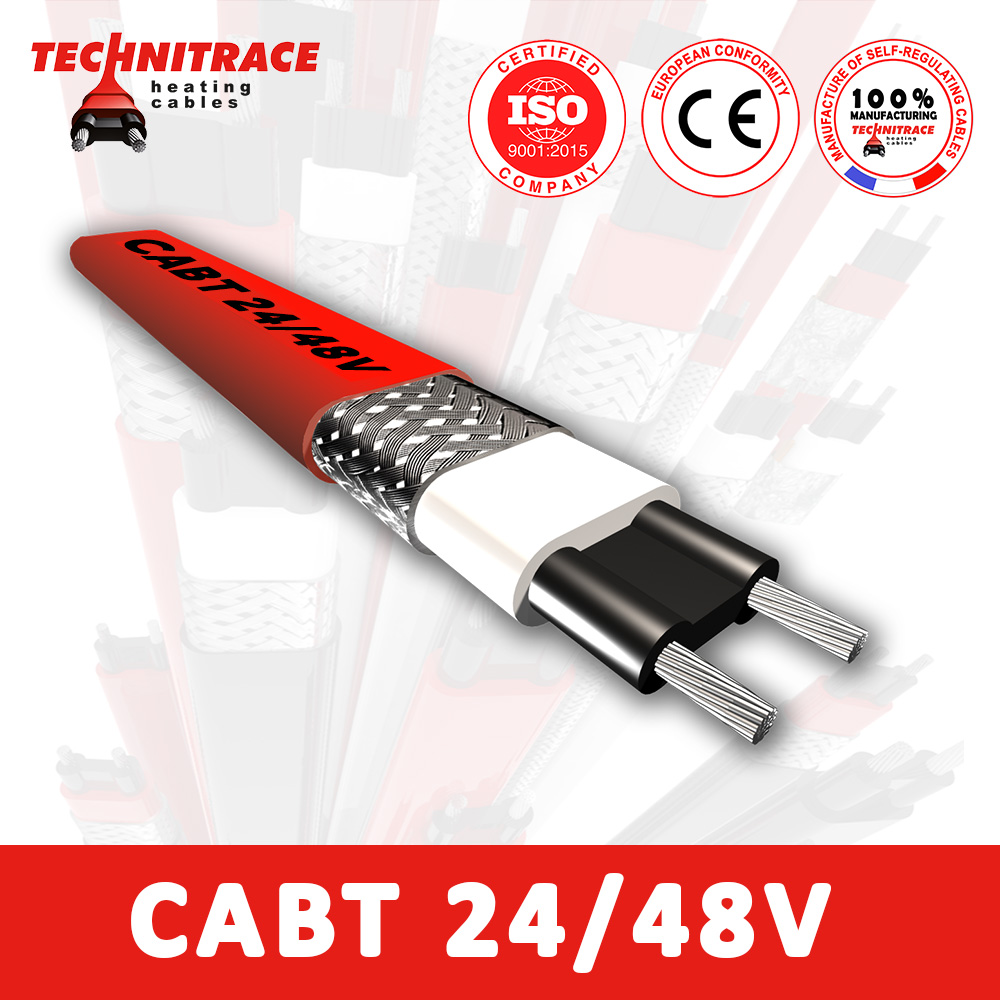

Low temperature self regulating heating cable
CABT 24/48V

  • Cold water frost protection
  • Maintaining low temperatures for the pipes, tanks, and valves of your motorhome or mobile home
  • Frost protection for video cameras, cabinets and enclosures, antennas, solar panels, etc…
  • Can be used directly on the battery or the solar panel regulator
  • CABT: Basic version
  • CABT+C: Tinned copper braid version
  • CABT+CG: Braid + over jacket version
  • CABT+RG: Aluminium foil + ground wires + over jacket option
  • 24/48V
  • 10/15/30 W/m
Technical Sheet (PDF)
Everything about CABT 24/48V cable

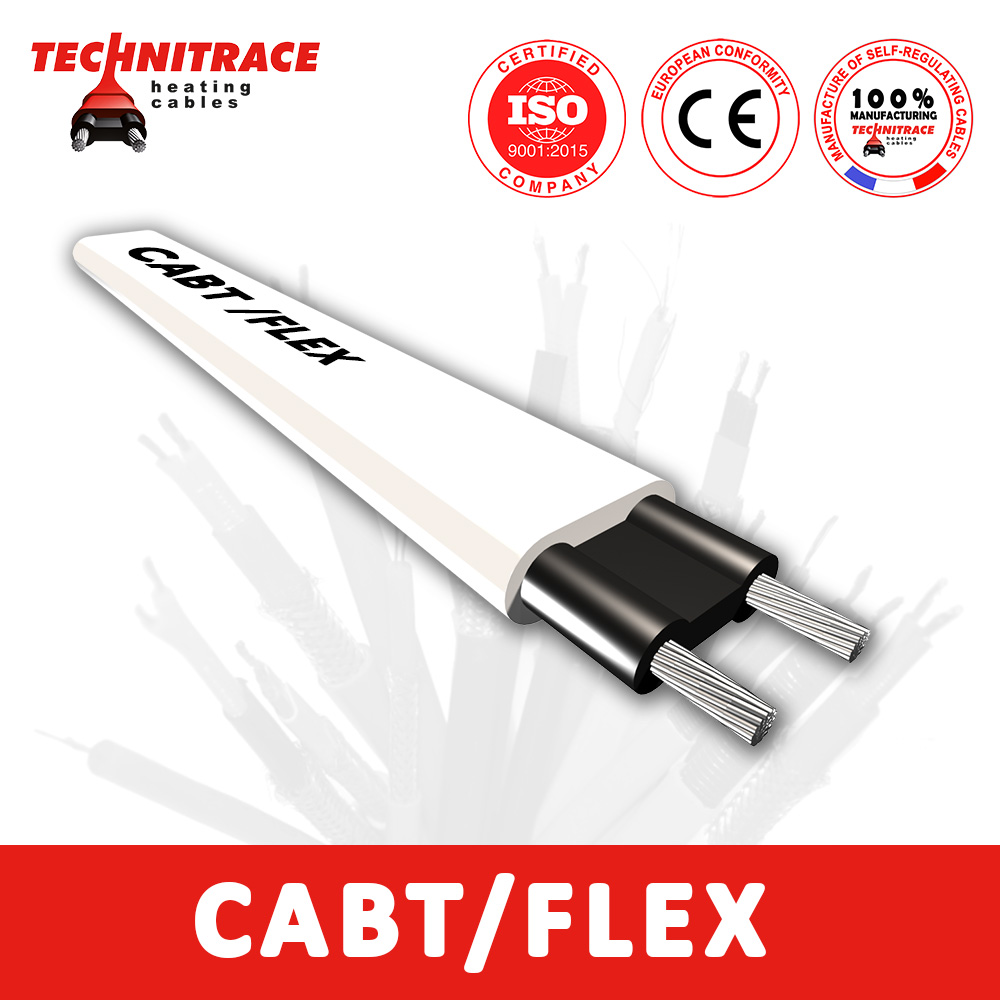

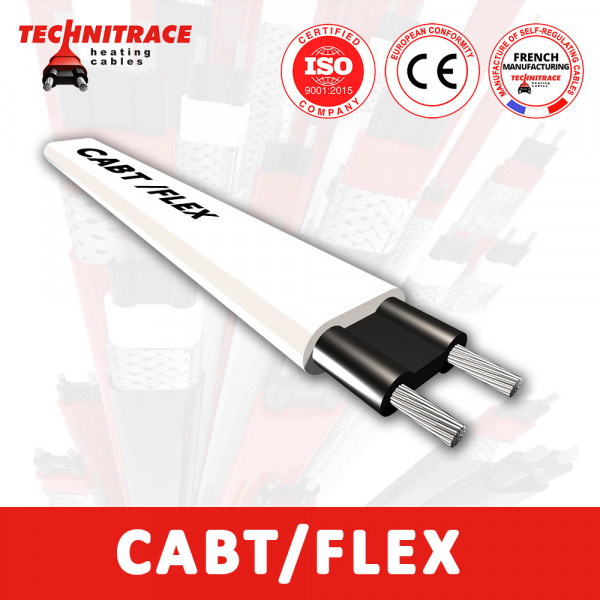

High flexibility self regulating heating cable
CABT/FLEX

    • Frost protection for cold water, chilled water, and grease water systems
    • Maintaining the temperature of pipes and tanks up to 35°C
  • CABT/FLEX: Basic version
  • CABT/FLEX+C: Tinned copper braid version
  • 10/15/20/26/30 W/m
Technical Sheet (PDF)
Everything about CABT/FLEX cable

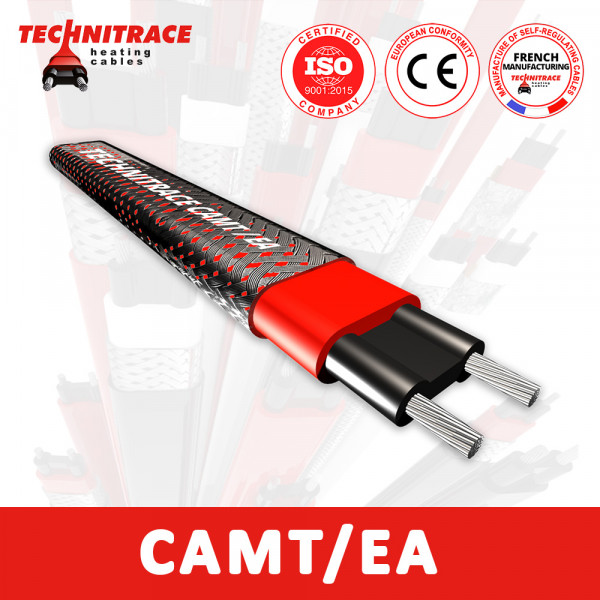

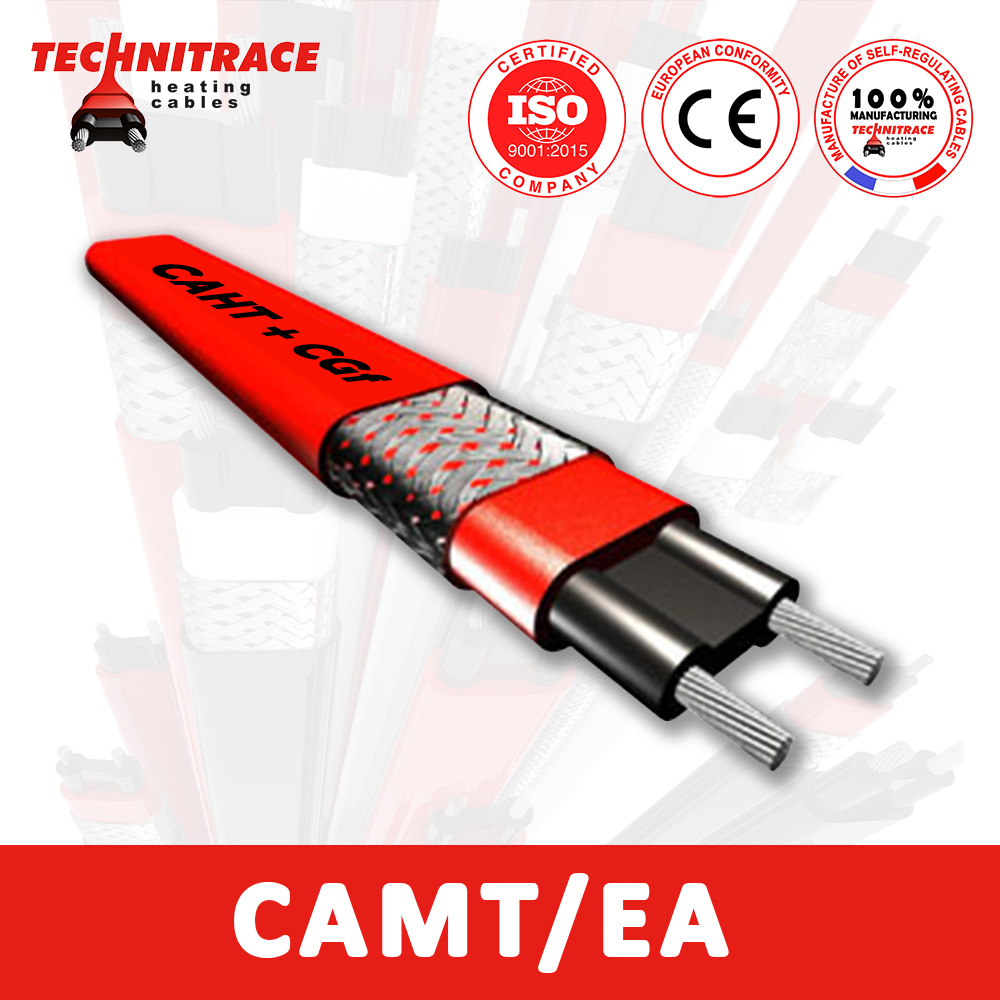

Medium temperature self regulating heating cable
CAMT/EA (plastic pipes)

    • Maintaining the temperature of domestic hot water systems at 45/50/55°C
    • Multi-layer protection up to 55°C
  • Exclusivily for plastic domestic pipes
  • 15 W/m
Technical Sheet (PDF)
Everything about CAMT/EA cable

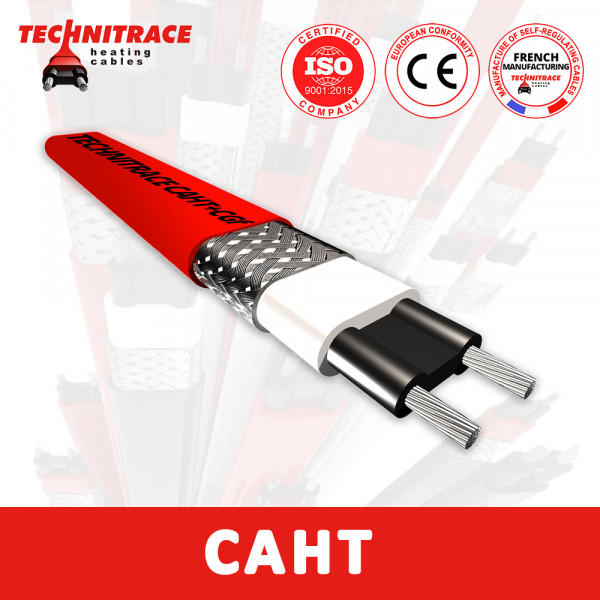

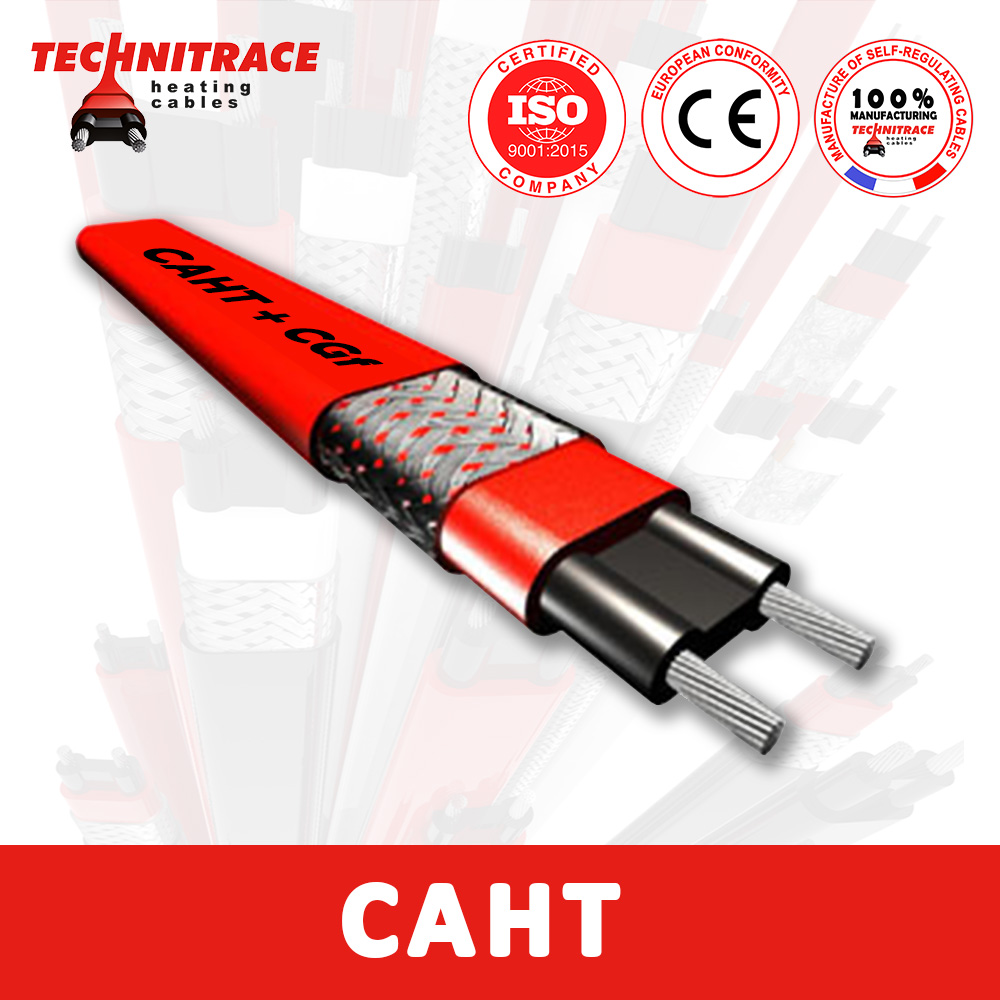

High temperature self regulating heating cable
High Temperature

CAHT

  • Maintaining the temperature of tanks, reservoirs and hydraulic systems up to 85°C
  • Withstands a maximum temperature of 120°C when plugged in / 200°C when unplugged
  • Good flexibility allowing for the tracing of hydraulic components (valves, pumps, etc.)
  • Exclusively on metal piping
  • CAHT: Basic version
  • CAHT+C: Tinned copper braid version
  • CAHT+CGf: Braid + over jacket version
  • 15/30/50 W/m
Technical Sheet (PDF)
Everything about CAHT cable

High temperature self regulating heating cable
Very High Temperature

CATHT

  • Maintaining the temperature of tanks, reservoirs and hydraulic systems up to 150°C
  • They can withstand up to 250°C when unplugged
  • Best used with a regulating system
  • Exclusively on metal piping
  • CATHT+CGf: Braid + over jacket version
  • 68 W/m
Technical Sheet (PDF)
Everything about CATHT cable

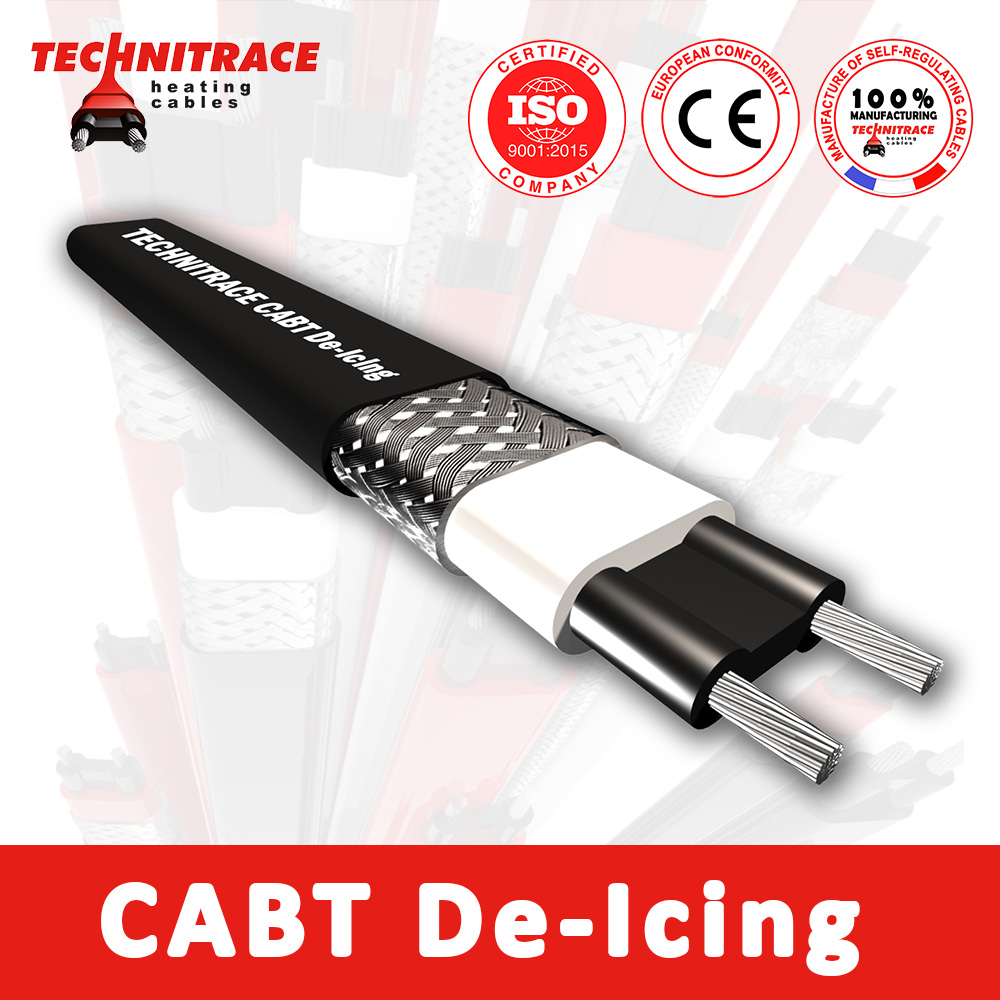

De-icing self regulating heating cable
CABT/De-icing

    • Maximum exposure: 65°C under voltage
    • Maximum exposure: 85°C when powered off
    • Frost and ice protection for drainage pipes, …
    • Snow removal from roofs and gutters
  • Maximum length circuit: 110m
  • Supply voltage: 230V/50Hz
  • Output calorific powerr: 40 to 20 W/m
Technical Sheet (PDF)
Everything about CABT/De-icing cable

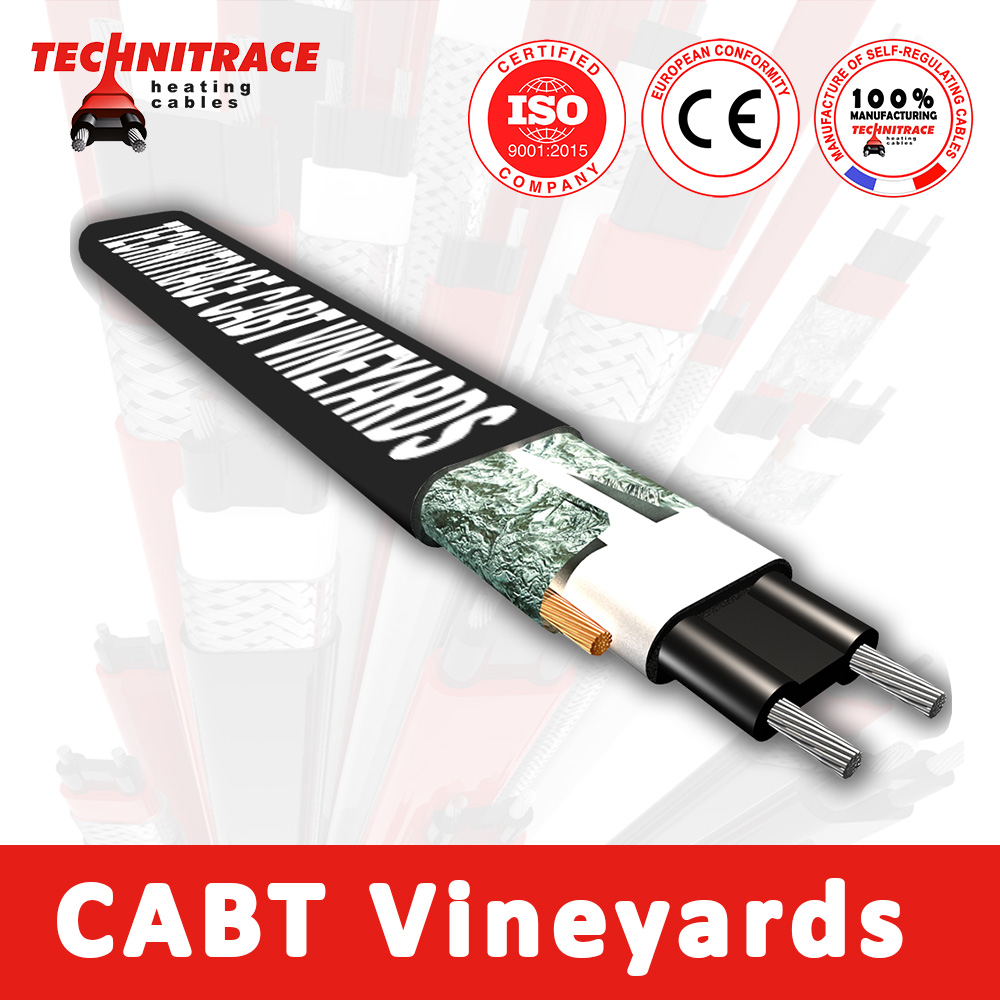

Vineyards self regulating heating cable
CABT Vineyards

    • Protecting the vineyards from frost
    • Low initial investment (approximately €30,000/ha)
    • Economical (150 kVA/h or €45/h per hectare)
    • Simple installation by the winegrower using hoops on the lowering wire
  • No maintenance and completely autonomous
  • Reliable investment and depreciation over several years
  • Supply voltage on 230 V / 50 Hz
  • UV resistant oversheath, chemical treatments, …
  • No need to bury the cable
Technical Sheet (PDF)
Everything about CABT Vineyards cable

CONSTANT POWER HEATING CABLE

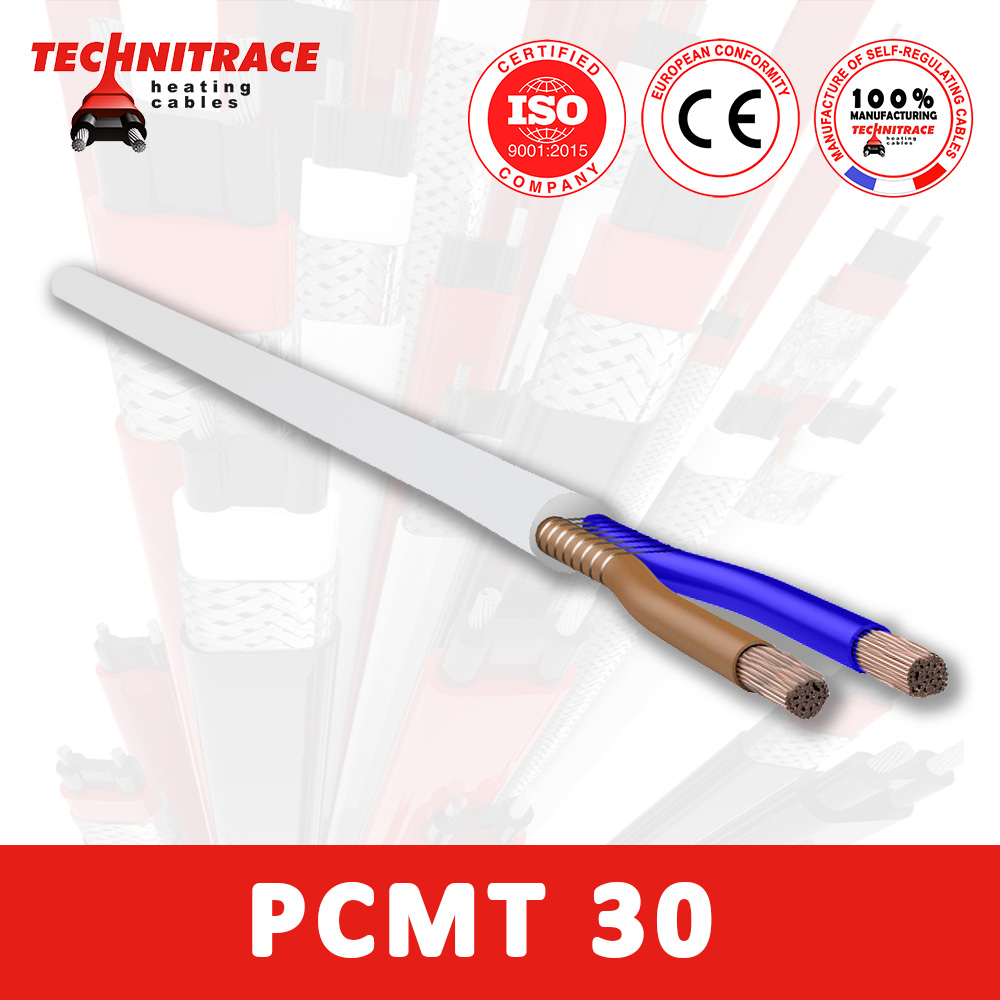

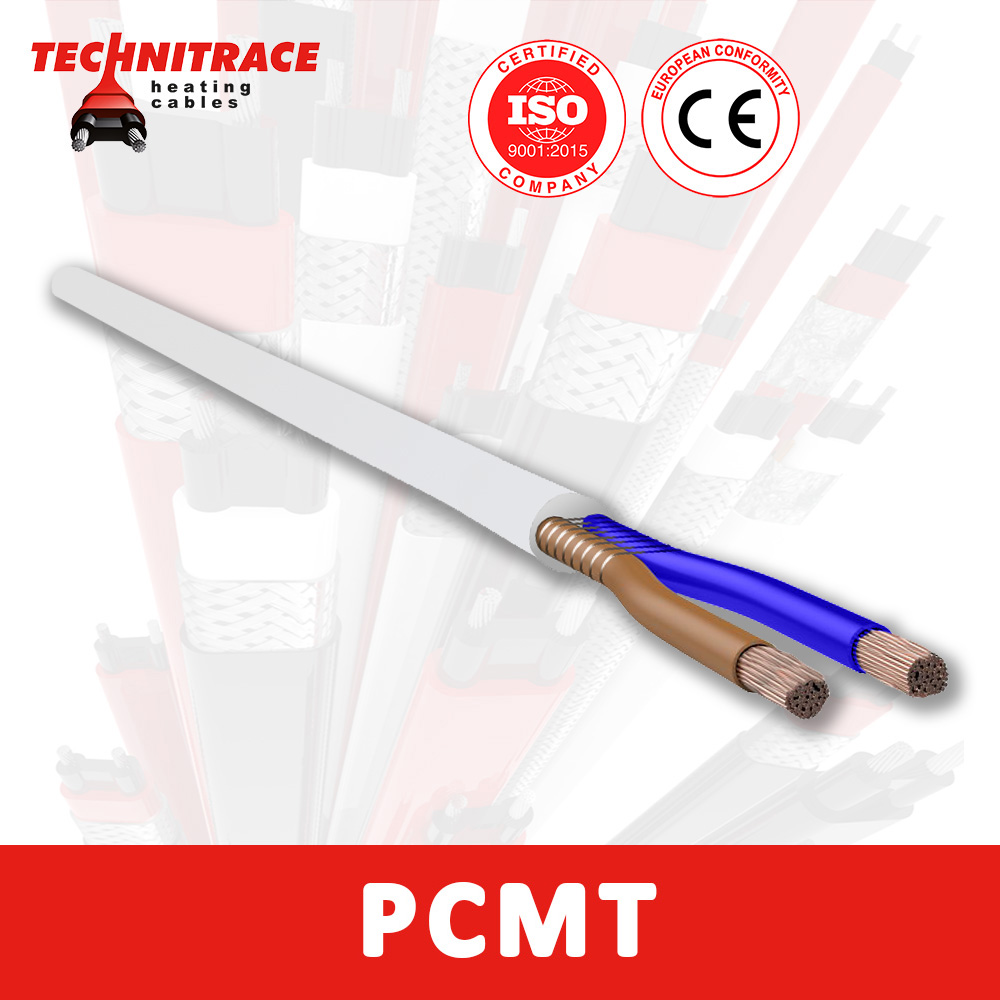

Constant power heating cable
Middle Temperature

PCMT 30

    • Exclusively on metal piping
    • Power: 30 W/m (± 5%)
    • Power supply voltage: 230V/50Hz
    • Maximum temperature: 120°C
    • Operating temperature (off): -70° to 200°C
    • Maximum circuit length: 50 m
  • Power: 30 W/m (± 5 %)
  • Power supply: 230V/50Hz
  • Maximum temperature: 120°C
  • Temperature off : -70° à 200° C
  • Maximum length of a circuit: 50 m
Technical Sheet (PDF)
Everything about PCMT 30 cable
