Project Description
SELF REGULATING HEATING CABLES CABT/VINEYARDS
Technitrace company has developed a reliable solution against spring frosts and accumulation of snow or ice on the buds of vines and having widely proven itself in vineyards.

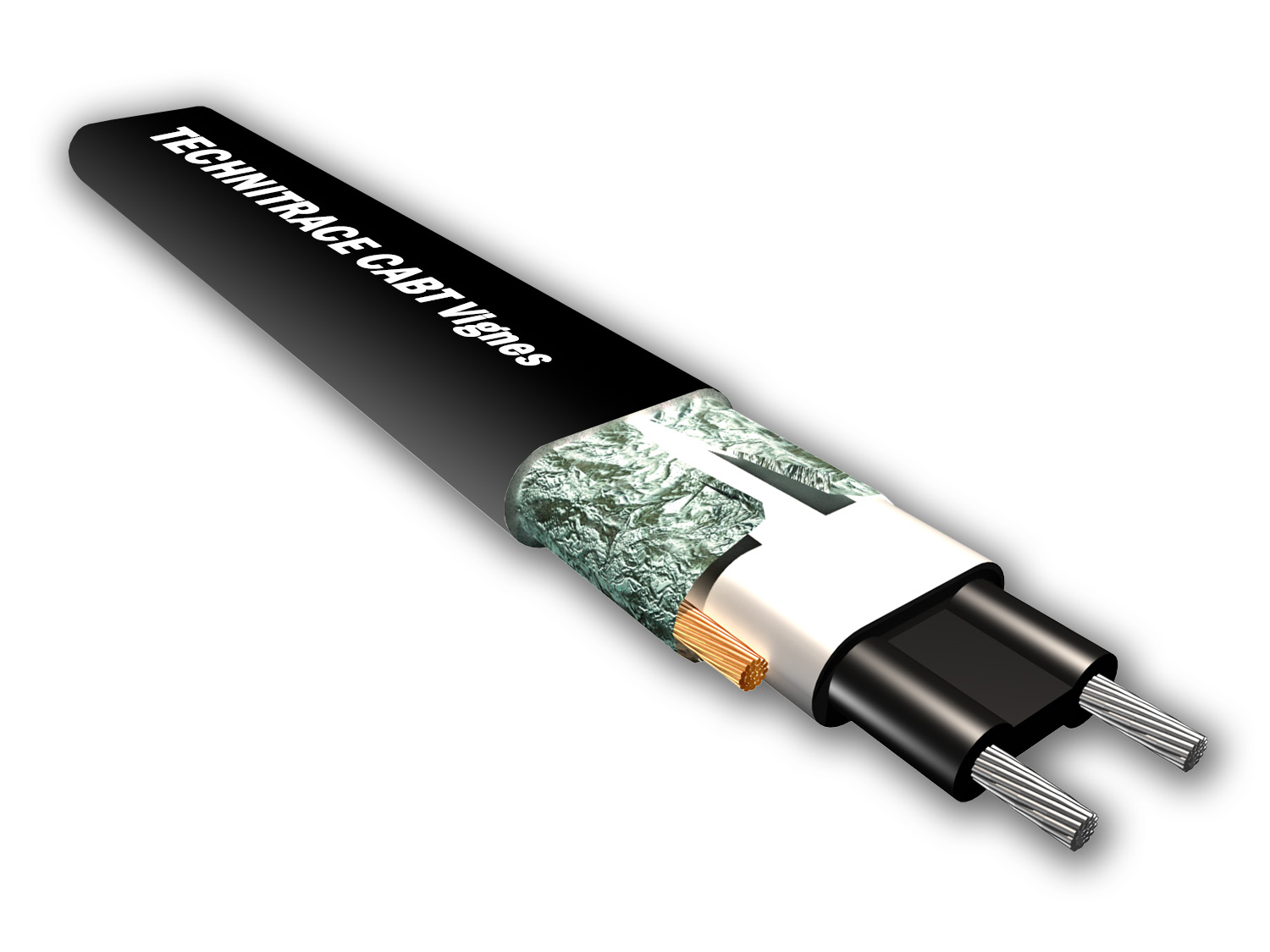

Ecological and innovative technology, the CABT/Vineyards self-regulating heating cable can be cut to the precise length at each end of the row without any loss of power calorific linearity of the latter unlike other technologies used.
Its outer sheath is specially designed to resist a harsh environment (treatments used by the profession, shocks, bad weather, etc and sun radiations.).
Electronic cards have been specially developed for monitoring installations with intensity absorber and heating cable cut detection.
AN EFFECTIVE SOLUTION AGAINST LATE FROSTS

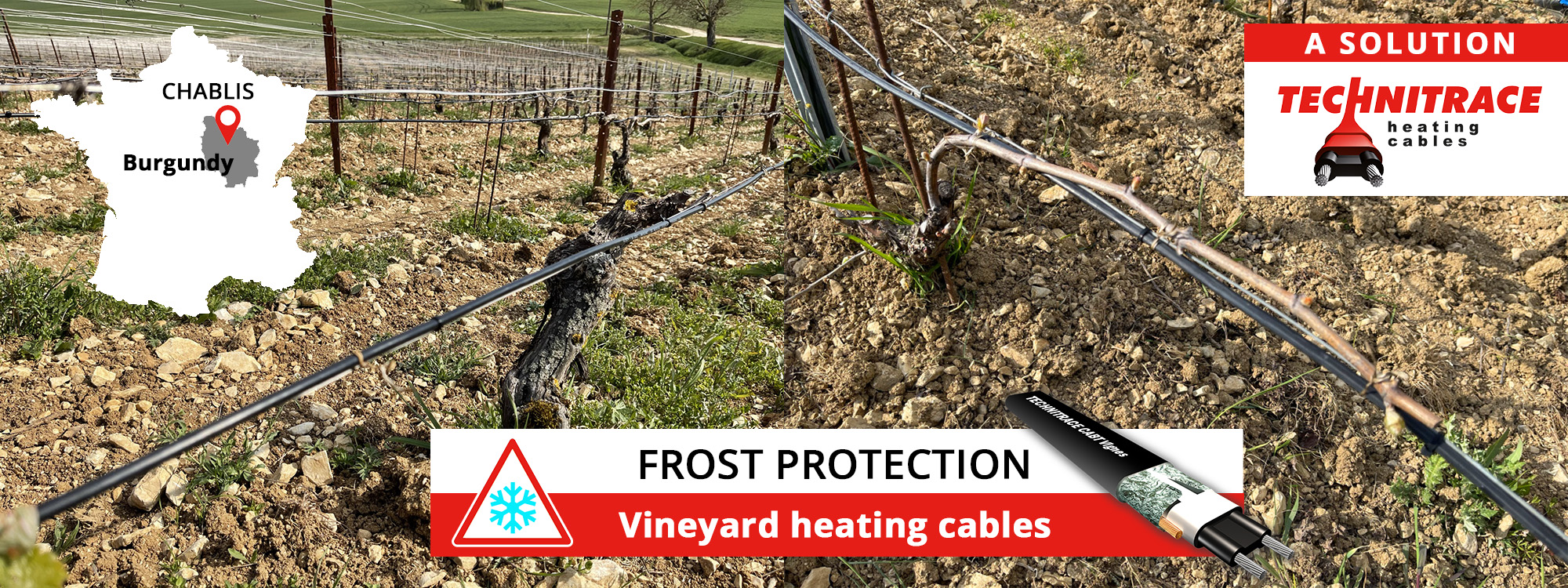

The CABT Vigne self-regulating heating cable was installed in the heart of the Burgundy vineyards in Chablis, as well as in the Champagne vineyards near Reims.
Designed to protect vines from late frosts, thanks to the numerous quality tests applied at the manufacturing stage (in Toucy, Burgundy, France), this heating cable has proven to be highly effective, reliable over time, and particularly economical compared to other frost protection solutions.
HOW TO INSTALL A HEATING CABLE IN YOUR VINEYARDS?
To install the CABT Vineyard self-regulating heating cable in your plots, several power supply solutions are possible:
- Direct connection to the electrical grid via a protective cabinet
- Connection to an electric generator
- Connection to a generator installed on a tractor’s PTO

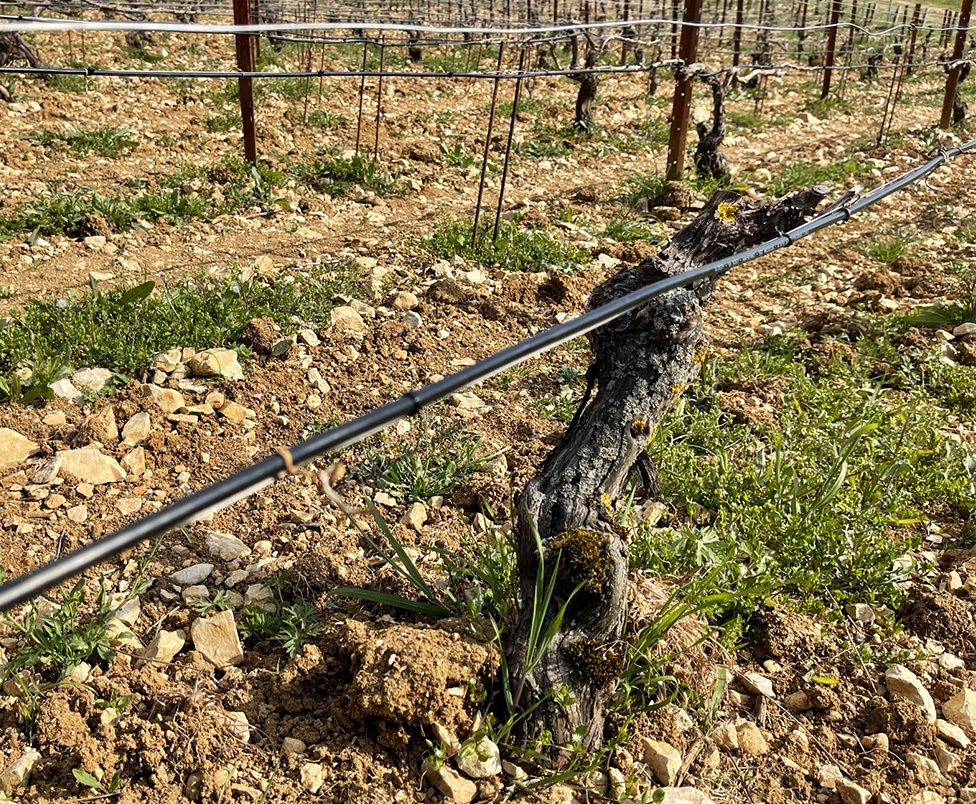

Securing the cable is very simple: loose plastic straps must be placed on the lowering wire. This solution has the advantage of requiring no maintenance and is both environmentally friendly and durable (sheath resistant to UV rays and chemical treatments).

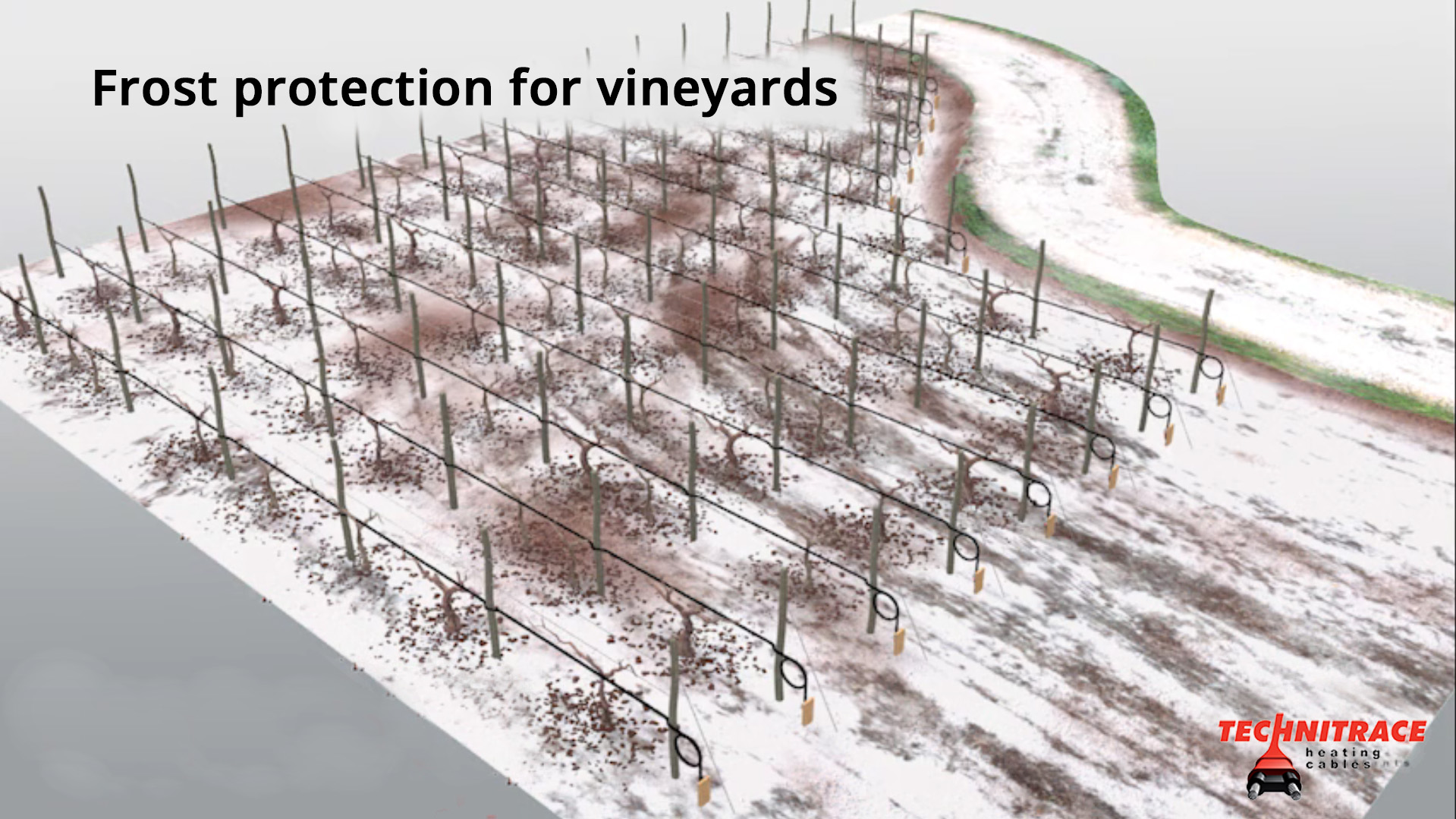

Thanks to one or more thermostats controlling the heating cable’s trigger temperature, the vines are protected zone by zone.
FINAL THERMAL TESTS
READY TO COMBAT LATE FROSTS!
The latest conclusive tests on our heating cable for vineyard frost protection. We regularly carry out tests on the cables we manufacture to measure their performance under different conditions of use and temperature. Our latest tests confirm that our heating cable is :
- a reliable, cost-effective solution
- a preventive solution
- a sustainable solution
If you’re looking for an efficient, self-regulating system, adapted to the size and topography of your vineyard, contact TECHNITRACE, French manufacturer of heating cables dedicated to frost protection. We can advise you on the specific features of your vineyards.
MAIN APPLICATION
Advantages
- no maintenance and completely autonomous
reliable investment and depreciation over several years
ecological and sustainable (no smoke, possibility of powering by green energy, etc.)
- simple installation by the winegrower by strapping on the lowering wire
- delivered in reels, cable can be cut in lengths from 0.50 to 150 m maximum
- supply voltage on 230 V / 50 Hz
- UV resistant oversheath, chemical treatments, …
- no need to bury the cable

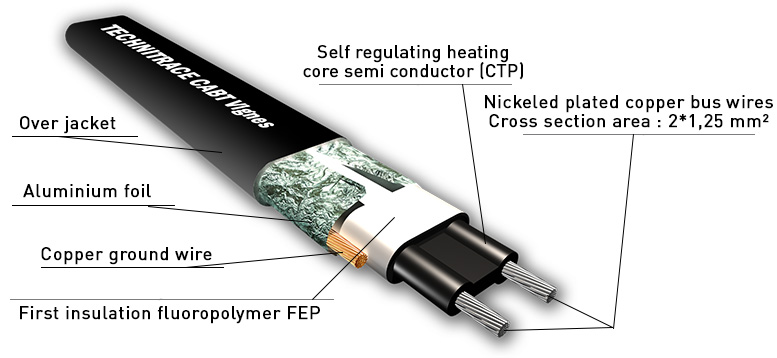

CONSTRUCTION OF A SELF REGULATING HEATING CABLE CABT/VINEYARDS
