ANTI-FREEZE HEATING CABLE – HEATING CABLE FOR TEMPERATURE MAINTENANCE
Self-regulating heating cable: the tracing solution manufactured by TECHNITRACE

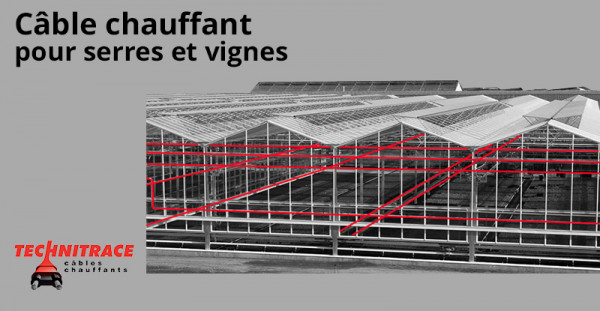

Heating cables provide high-performance tracing for frost protection of pipes and hydraulic components. Heating cables are a highly effective solution for protecting your plants, fruits, or vegetables from frost, both in greenhouses and outdoors.
Heating cable
temperature maintenance
Heating cable
frost protection
Self-regulating heating cable: Certified quality
TECHNITRACE manufactures its own heating cables with a very high level of requirement (TECHNITRACE certified ISO9001: 2015, CABT heating cable: certified QB58 by the SCTB, CAMT heating cable: certified QB58 by the SCTB), will be able to provide you with its expertise to study all your frost protection projects and for maintaining the temperature of sensitive elements.
Self-regulating heating cable: Areas of application
The TECHNITRACE heating cable, with its performance and long-lasting reliability, its intrinsic qualities, and its flexibility of use, meets the needs of a very diverse clientele:
- Agriculture
- Viticulture
- Horticulture
- Industry
- Construction
- Chemicals
- Aeronautics
- Residential Construction
- Mobile Home
- Tiny House
- Boat Building
- Plumbing
Self-regulating heating cable: Main uses
To meet the needs of each customer, TECHNITRACE manufactures and offers heating cables with the most suitable specifications:
Heating cable for frost protection of cold water pipes
Heating cable
for maintaining the temperature
of pipes and tanks (up to 35°C)
Self-regulating heating cable: Areas of application
The self-regulating anti-freeze heating cable manufactured by TECHNITRACE is sold either in short lengths (5, 10 or 20m), or in reels (50, 100 or 250m), in 12, 24, 48, 110 and 220 Volts, with or without braid, and in different powers: each frost protection or temperature maintenance project needs to be studied to determine the most appropriate characteristics to meet your needs.
Heating cable
in 5 m, 10 m and 20 m
Heating cable in reels
of 50 m, 100 m and 250 m

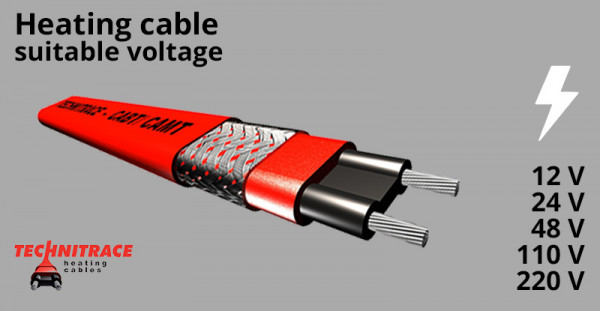

Heating cable
available in 12 V, 24 V, 48 V, 110 V and 220 V
Low temperature self-regulating heating cable: Advantages
Heating cable
and specificity of the semiconductor element
The CABT low-temperature self-regulating heating cable manufactured by TECHNITRACE consists of a semi-conductor plastic heating element that adapts its heat output (W/m) at every point according to the local temperature. This intrinsic feature of the semi-conductor heating element therefore makes it possible in certain cases to dispense with a regulation system (self-regulation).
Heating cable
cut to the desired length
The TECHNITRACE heating cable can be cut to the desired length on site (150m max) and is therefore very easy to install. For your electrical tracing installations, particularly on chilled water networks, we strongly recommend the combination of our THA/E electronic regulators. These, equipped with a current absorber at start-up, guarantee you rigorous and reliable electronic regulation (energy savings of over 50%).
Heating cable
with locally adapted power
The TECHNITRACE heating cable allows for branching from a single power supply point. The semiconductor heating element adjusts its power locally. The design and materials of the TECHNITRACE heating cable offer good flexibility of use, which allows for the tracing of hydraulic components (valves, pumps, etc.). Finally, still among the many advantages of the TECHNITRACE heating cable, it allows for overlaps during installation (self-regulating).
Self-regulating heating cable: Installation tips
Self-regulating heating cable
on metal pipes
On metal piping, we recommend providing extra lengths of heating cable for thermal compensation of hydraulic devices, as well as for dismantling (thermal compensation coil before and after the device to be maintained). When installing the heating cable on metal piping, it is important to take care against possible pinching or overlapping.
Self-regulating heating cable
on plastic pipes
On plastic piping (PVC, HDPE, etc.), we recommend providing a grounding braid. The heating cable will be placed on a heat sink (aluminum adhesive) and covered with a heating chamber (aluminum) to optimize heat transfer.
Self-regulating heating cable: A question, some information?
